2018 year new! H.264 wifi Panoramic new model cctv camera

FOB Reference Price:Get Latest Price
US $35-68 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
P8
Type:
IP Camera
Style:
Box Camera
Sensor:
CMOS
Technology:
NetWork
Special Features:
night vision
Product name:
P8 H.264 wifi Panoramic new model cctv camera
Monitoring Platform:
Android 4.4+,IOS 7+,Windows CMS
Lens:
360°panoramic lens
Color:
Black
Night Vision:
Yes
Working Voltage:
DC 12v
waterproof:
yes
Resolution:
1280*720
Video Frame:
1~30FPS
Support cloud service:
Yes
Packaging & Delivery
Packaging Details
Package as show. One pcs put into one color box, 50 box/CTN,
Delivery Time
2-7 working day after payment arrived our bank account
Product Description
 Shenzhen manufacturer wifi 360 degree Panoramic new model cctv cameracheap price + high quality!
Feature:
1,. Adopt Dual core 32 digits DSP processing chip (Huawei HI silicon V200), support pure hardware compression format.

2. Adopt 1.3 Mega pixel 1/3” SC1135 Low illumination CMOS sensor, color 0.1 Lux&F1.2, black and white 0.01Lux&F1.2.

3. Adopt high-quality M12 panoramic high-definition fish-eye lens, which perfectly present horizontal180 degree and vertical 360 degree stereoscopic vision

4. Adopt environmental protection and energy saving technology, equipped with a DC12V / 3Wh solar power panel.

5. Adopt backup power supply, built in DC12.6V/15Wh lithium battery

6. Adopt H.264 video code, pure hardware compression, support dual-stream technology

7. Resolution 1280*960/704*576, Frame rate 1~30FPS adjustable, bit stream 0.1M~6Mpbs adjustable

8. Support built in 8GB/16GB/32GB TF Card

9. Support 2D/3D image noise reduction tech, make the images more clear, brilliant, and transparent



Data:



ParameterParametric Performance Specification
 Indoor  VisionP8WIFI ,TF card 720P video storage,video mode switchable,Video image correction,Support Backup Power
Model
 Green Power(Solar)Power AdapterBackup Power(lithium battery)

 DC12V/6WhDC15V/30WDC12.6V/15Wh
Power InputDC12V~DC18V(Standard power input:DC15V)
 ModelInput reference voltage DC15V    Corresponding working currentPower Consumption
 Indoor  VisionP8Day120 ± 5mA<2W
Working CurrentNight380 ±10 mA<6W
CPUDual-core 32-bit DSP chip (huawei haisi Hi3518E V200)
System structure adopts the embedded design RTOS,pure compression, support the guard dog
Senser1.3 Mega 1/3" SC1135 low illumination CMOS senser;Color 0.1Lux&F1.2,B/W 0.01 Lux&F1.2
Lens· Standard M12 horizontal 360°panoramic lens
Video TechH.264 video coding, support dual-steam ;support 0.1M~6Mpbs adjustable
ResolutionMain steam: 960P(1280*960)/720P(1280*720);Second steam:D1(704*576)
Video Frame1~30FPS adjustable
Preview ModeFisheye,columnar,single screen, three frames, four frames, etc.
Storage ModeBoot recording ,Cyclic Record
Video Clip1~120mins adjustable
StorageTF Card,Max 32GB
Netwark2.4G WIFI (IEEE 802.11 b/g/n)
Monitoring PlatformAndroid 4.4+,IOS 7+,Windows CMS
Remote monitoringCloud service fun, support remote monitoring and management of the camera

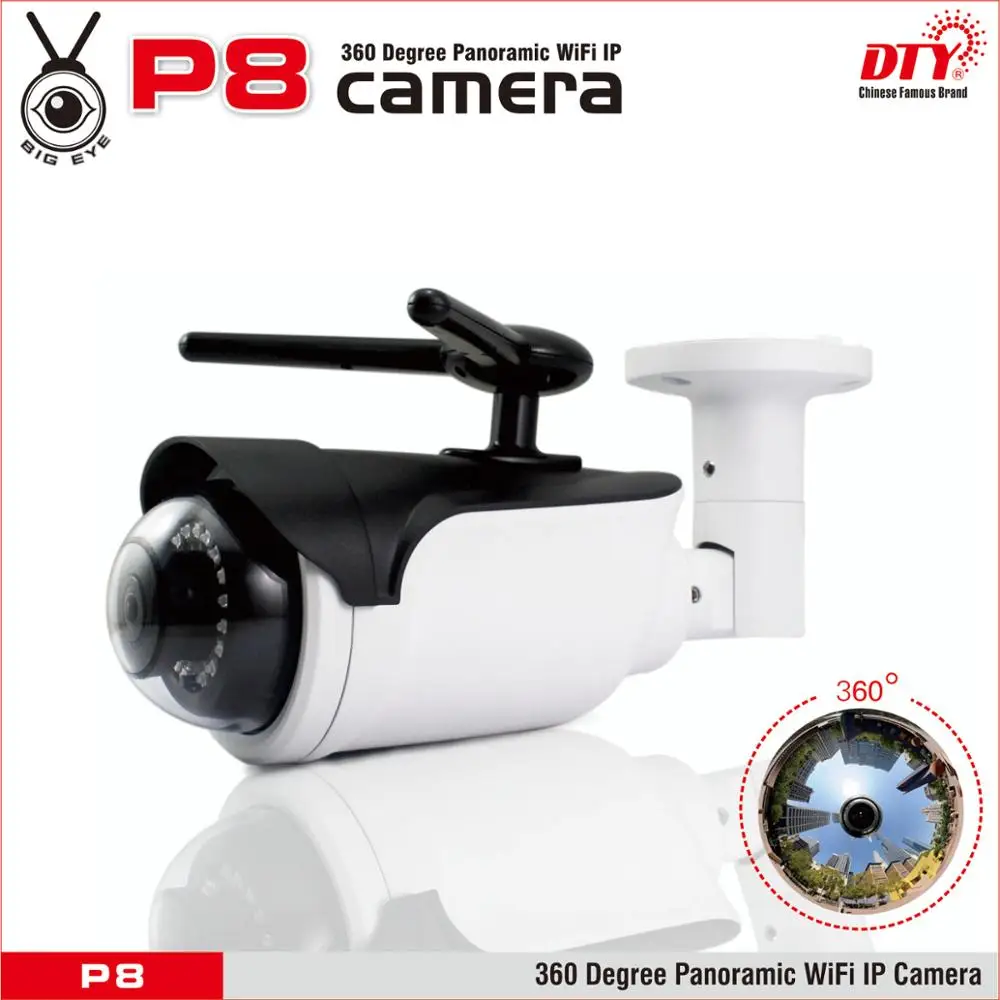

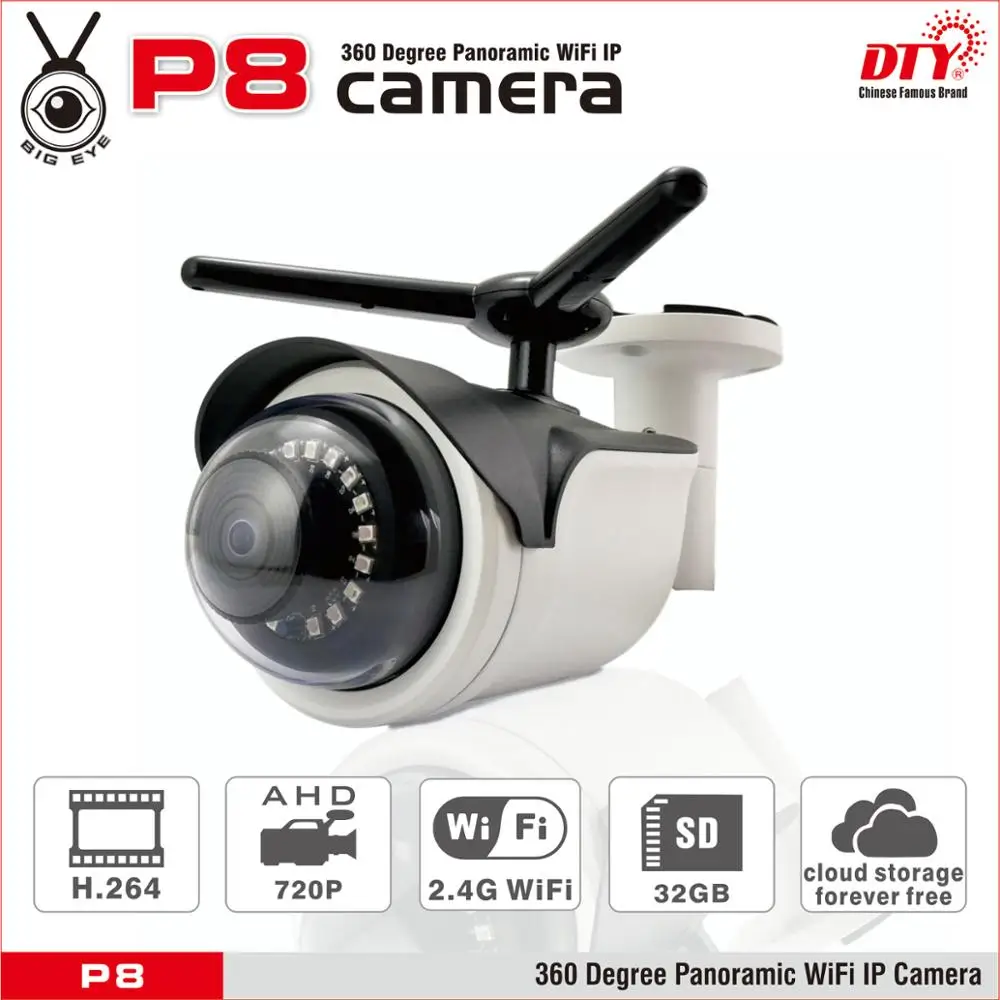

 Pictures for P8 ip cameras














Packaging & Shipping



Packing for ip  camera:



One pcs put into one gift box. provide OEM packing.







Shipping term:

“HK Post”, “China Post”, “EMS”, “DHL”, “UPS”, “Fedex”, “SF” are available.

Please make sure your address, full name and phone number are correct.

Orders will be delivered according to the procession time after payment is confirmed.

Company Information







Our factory DTY(Shenzhen) Industrial Co., Ltd is established in 1996. With more than 15 years experience, DTY has developed into a hightech company specializing in Digital Video Recorder successfully. Our product range includes Mobile DVR,Cameras,Wireless DVR. With our experienced professional R&D department, we are also available to provide OEM and ODM services for buyers. We supply high quality products to our worldwide customers along with excellent customer service which gain us a lot of reputation.



And long-term cooperation is what we expect.
