Surveillance vehicle cms h.264 cctv dvr with 3g gps wifi, H80 series

FOB Reference Price:Get Latest Price
US $80-260 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DTY
Model Number:
H80 series
Video Resolution:
D1/HD1/CIF/QCIF select-able
video standard:
PAL/NTSC
Powe input:
DC8V~DC38V
Working temperature:
-20℃~+60℃
Video Technology:
H.264
Total Frame rate:
PAL(1~100FPS optional)and NTSC(1~120FPS optional)
Storage interface:
SATA Standard HDD interface, SD/SDHC Card slot
Storage mode:
Stop when ful l or cycle recording
Product name:
H80 series vehicle cms h.264 cctv dvr
Mainfram Size:
145(Length)*155(Width)*55(Height)mm
Packaging & Delivery
Packaging Details
Normal packing as shown.
Delivery Time
2-7 working days after paid

ShockProof vehicle h 264 alarm output , vehicle cms h.264 dvr with 3g gps wifi, H80 series, H80 series. DVR Support multi languages Menu, Including Chinese, English, German, Russia, Spanish, Turkish, Arabic, Korea, Japanese...etc 28 languages. ( gps/wifi/3g/4g are optional)

Support XMeye and Myeye APP for phones.

Product Description

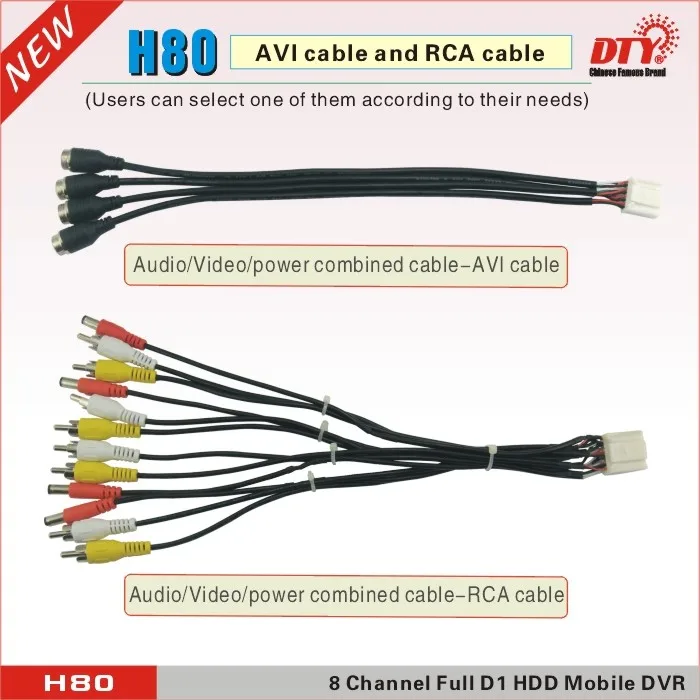

Basic Packing: H80 DVR*1, AV input cable *2( or RCA input cable*2), keys*2, TV out cable*1, combined alarm in/output cable*1, anti-vibration set*1, user*1.(  4G antenna, GPS antenna, WIFI antenna, 3G antenna are available. basic on the DVR function)







Overview

The  H80 series is a professional, rugged, solid state DVR designed for in-vehicle recording.  H80 series  DVR adopts H.264 compression format, records up to 8 channels video and audio at the same time, supports two SD Card and one HDD,each sd card  up to 128GB and HDD can up to 4TB  for saving video clips. The video resolution is up to D1 each channel, and the frame rate is up to 30fps (PAL). H80 series  works with all CCD/CMOS cameras; it is a new in-vehicle recording system that you can rely on.



H80 Series Guide

Model

Function

H80

Basic Model----8CH Full D1 Real Time Recorder

H80G

H80+GPS

H80W

H80+WIFI

H80G

H80+GPS+3G

H80GWH80+GPS+WIFI
H80-4GH80+GPS+4G
H80-3GWH80+GPS+WIFI+3G



























Features

01. H.264 main profile Video compression format;

02. Can work with power supply ranging from DC8V to DC38V;

03. Supports Manual Record, Alarm record,and scheduled Record;

04. Video resolution: D1/HD1/CIF/QCIF select-able for each channel; frame rate: 1-25fps(PAL)  or 1-30fps (NTSC) for each Channel;

05. Supports 8 channels "Video & Audio" recording and playback simultaneously;

06. Supports 6 channels "alarm input" and 2 channel "alarm output";

07. Video clips can be saved onto dual SD cards both up to 128GB

08. Video file can be backed up in H.264 or AVI formatand can be played back with  player on PC

09. With "Power-off delay" function to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs;

10. Support DC12V/24V,can power 8 cameras directly.

11. Equiped with INTERNAL HDD interface,can connect an INTERNAL HDD.

12. Support 2 PTZ control interface



Technical parameters :

Model

H80 Series

CPU

Hi silicon

Basic
Functions

REC,PLAYBACK,ALARM,USB,IR,HDD,SD,TV-OUT ,etc.

Optional
Functions

GPS

Wi-Fi

 3G/4G

Power
Supply

Car battery(For mobile monitoring)/Power adapter(For other applications)

Power
 input

DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:

DC8V~DC38V)

Working
Current

 250~380±10 mA (the reference voltage is: DC24V)

Power
output

8CH

DC12V/3A

(Provide power for cameras,with built in re-settable fuses.)

Working
temperature

- 10~ + 50 (ultimate working temperature: - 20~ + 60)

Video
Technology

H.264(Data encryption,need to use the playback software to play the videos)

Storage
interface

SATA Standard HDD interface, SD/SDHC Card

Storage
Capacity

256GB SD/SDHC Card(two 128GB SD Card, suggest to use the SD Card
@ Class10 or above), support to connect internal 2.5" SATA 4TB HDD

Storage mode

Stop when full or cycle recording

Camera

Any CCD or CMOS

Video
Standard

PAL system or NTSC system

Video Input

Standard:input frequency:Vp-p=1.0V,input impedance:75Ω

Resolution

8ch full D1 real time synchronized recording, also support playback and

 upload in the process of recording.

Total Frame rate

8CH

PAL(1~200FPS optional)and NTSC(1~240FPS optional)

Video quality

Main stream/Extra Stream mufti-grade adjustable

Output signal

8CH

CVBS (8ch video + 8ch audio,only support 1ch audio output at a same time)

Ethernet Port

One 10M/100M Ethernet port (RJ45), Support 1ch IPC input in special circumstances

Alarm input

6ch independent alarm input port( with isolating function)

Alarm output

2ch independent relay alarm output(4ch model has two red alarm indicators)

USB Standard

2 USB 2.0 port(support USB mouse/keyboard operation)

Delay
power off

Delay duration :1minutes (default), we can OEM the delay duration.

3G/4G

Support 4CH D1 real time video and audio transmission, including GPS info.

Other
Technology

RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position

Mainframe
Size

145(Length)*155(Width)*55(Height)mm

Mainframe
Weight

About 1.1kg

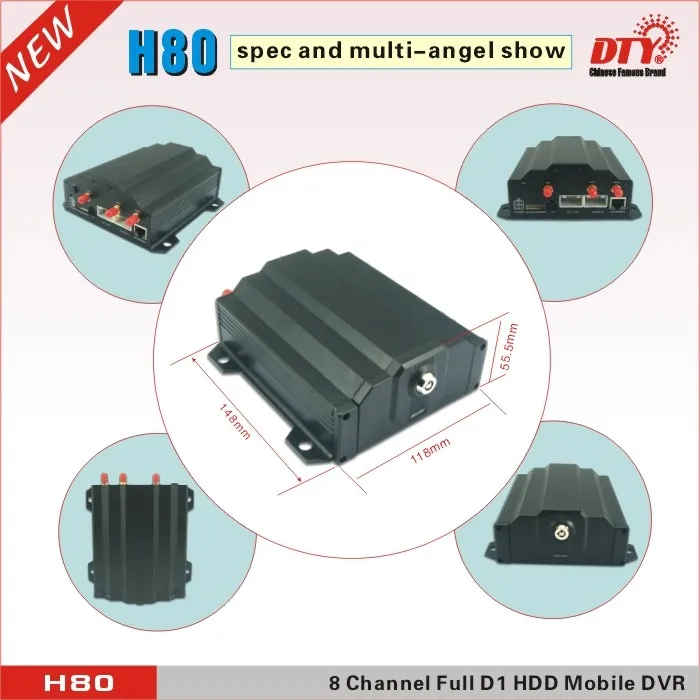

Product show :

Interface :

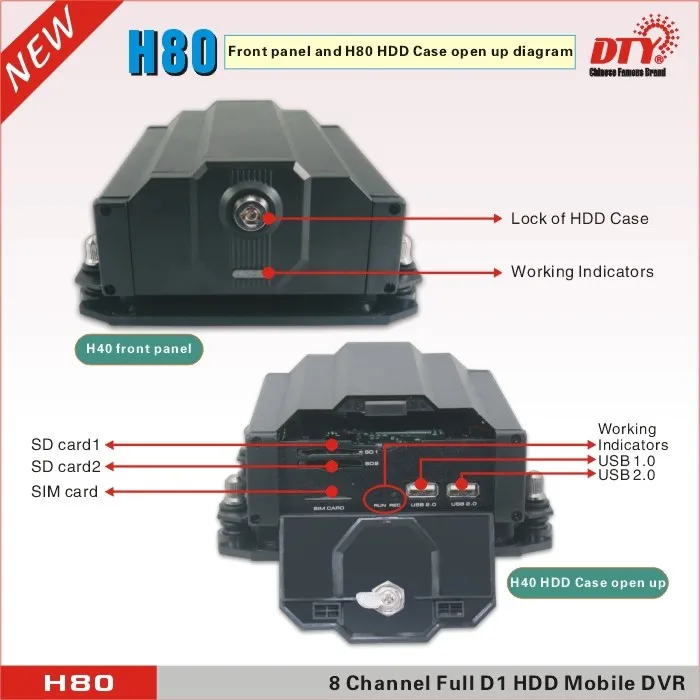

Front:

Back:

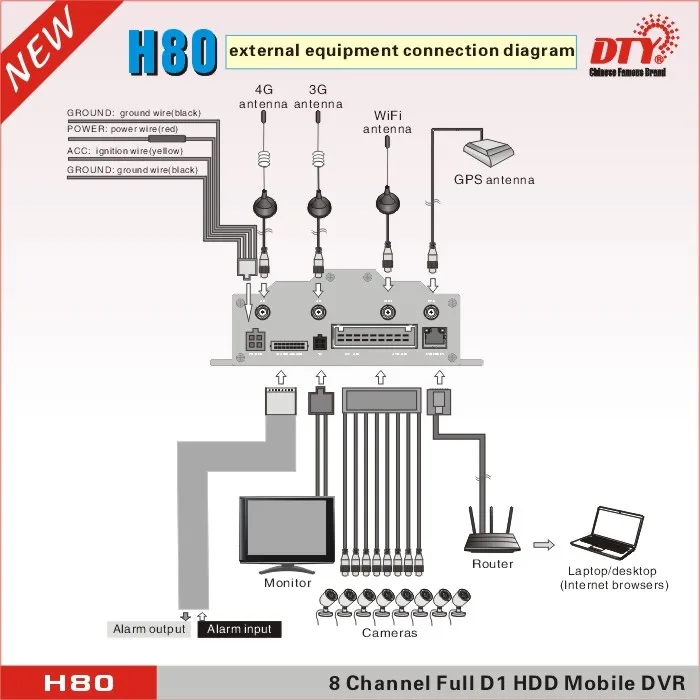

How to connect the DVR with external equipment :

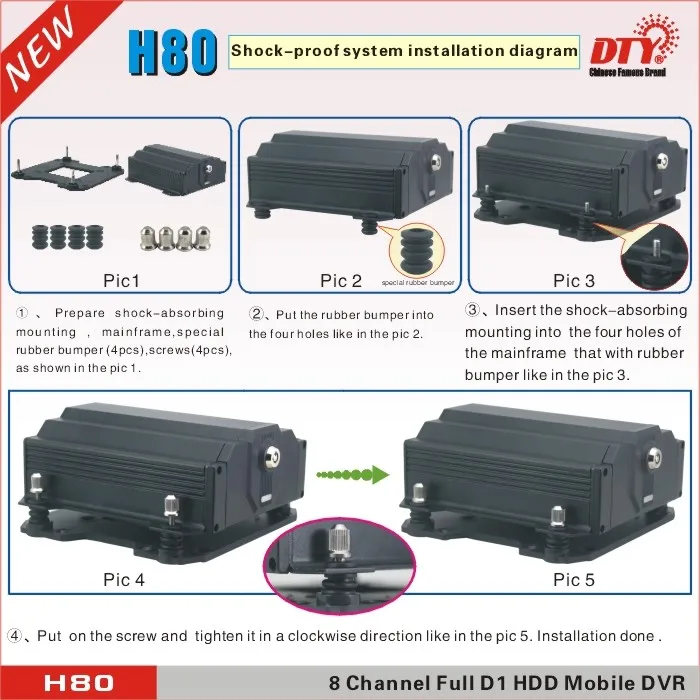

How to mount shakeproof accessories :

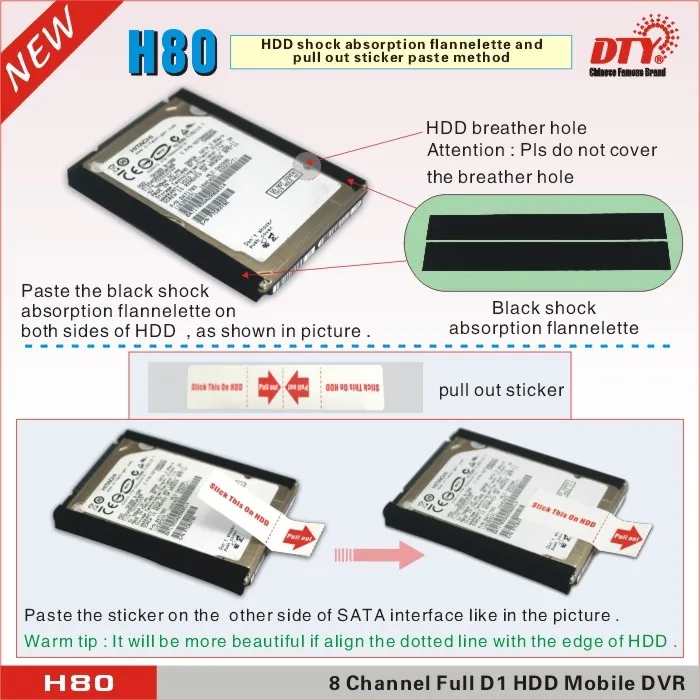

How to install HDD :

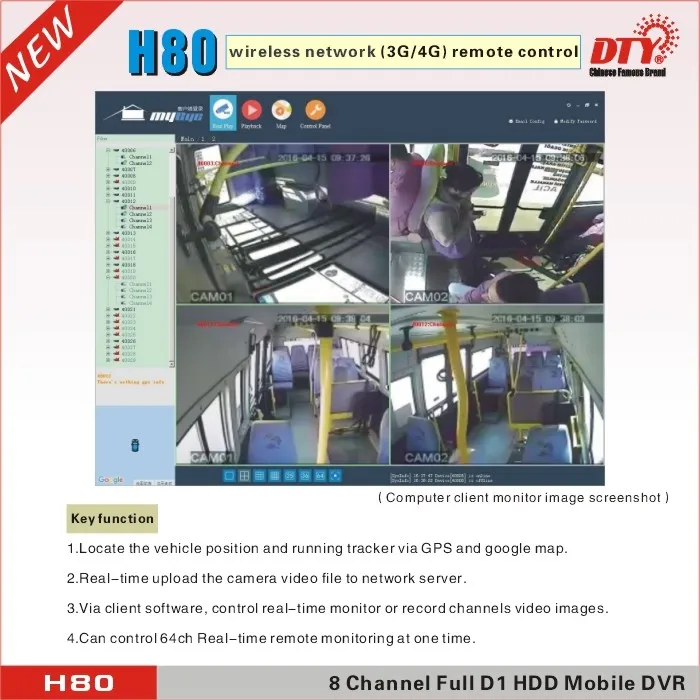

Remote monitoring software :

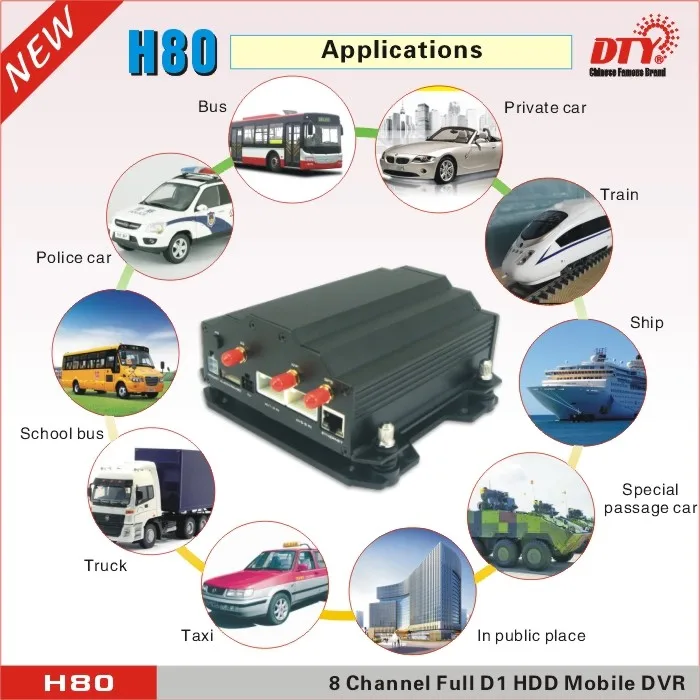

MDVR Application:



Packaging & Shipping

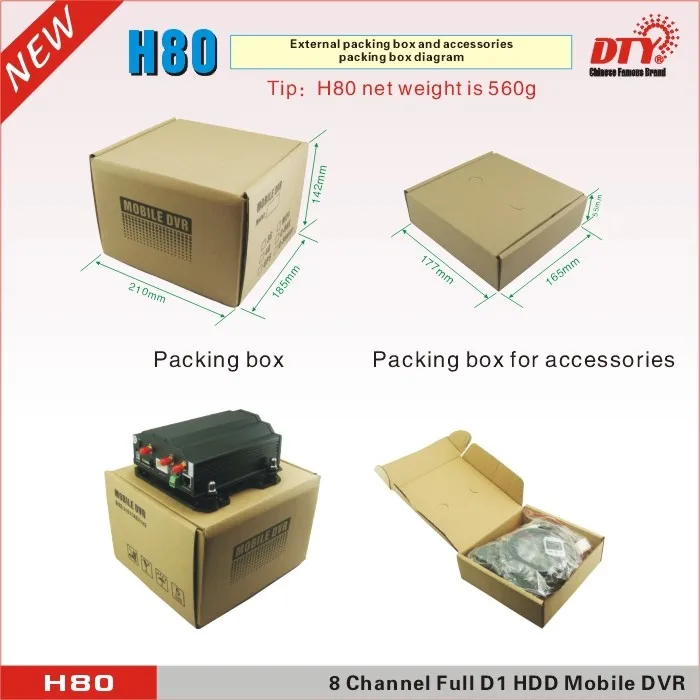

Packing Box:

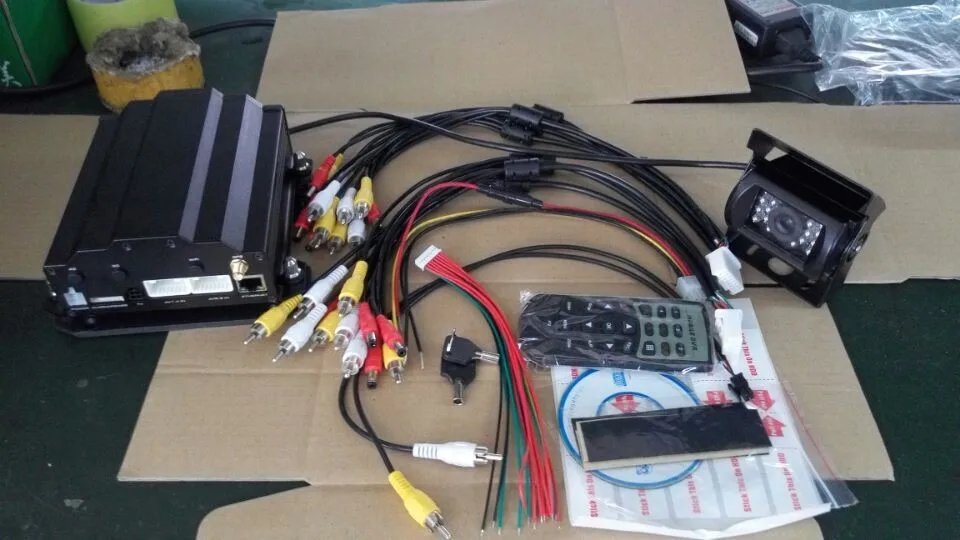

Packing List
