H.246 4 channels full d1 black box car, shenzhen hdd mdvr support 3g 4g wifi gps | H40

FOB Reference Price:Get Latest Price
US $79.5-202 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DTY
Model Number:
H40
Power Supply:
DC12~36V
Video Compression:
H. 264
Maximum Capacity:
2*128GB SD CARD+ 4TB HDD
Optional functions:
GPS, WIFI, 3G, 4G
Video Resolution:
4ch D1
Video Output:
1ch CVBS (RCA)
Network:
RJ-45, WIFI, 3G, 4G, P2P, FTP, Mobile Monitor,
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton Packing.
10 sets to a carton
Carton size: 75cm*40cm*23cm
Port
Shenzhen
Lead Time :
Shipped in 5 days after payment
H.246 4 channels full d1 black box car, shenzhen hdd mdvr support 3g 4g wifi gps | H40


Model

Features

H40

Basic Model--4CH Full D1 Local real time recorder.

Optional Function

GPS

Wi-Fi

3G for remote monitoring

4G for remtoe monitoring




Outstanding Features:

1.Basic: Full D1 Recording, 4TB HDD, 256GB SD Card(128GB*2),USB mouse operation, OSD, PTZ, GPS for Positioning and time synchronization, Power off delay
2. Cameras: Power 4 cameras direclty, Support analog cameras.
2.Record type: Boot Record, Manual Record, Alarm record,motion detect record and Scheduled Record
3. Alarm Function: Video Loss, Video Blind, Alarm input, Alarm output, Sending Alarm info by Email.
4. Network Service: RJ-45, Email, IE remote view, FTP, 3G, 4G, WIFI, Cloud. Mobile remote monitor on IOS/Windows/Android.
RJ-45 Ethernet Port, Static IP, dynamic IP, Email alarm, FTP, Cloud
5. Other: User administration authority, automatic reboot, system log (and log export), Configuration Import and Export

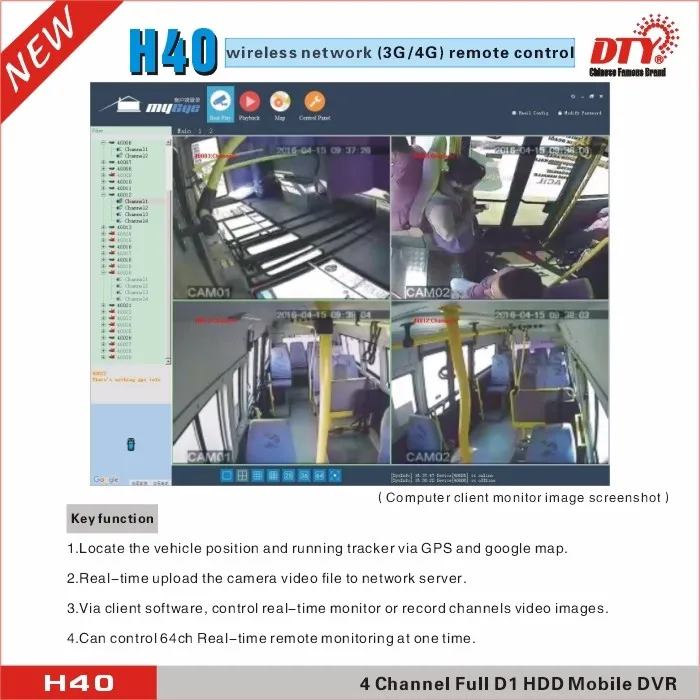

6. Remote management APP: Car Server APP & Car Client App, Cloud CMS APP



Specifications:

Specifications

Model

H40

CPU

Hi silicon

Basic
Functions

REC,PLAYBACK,ALARM,VGA,USB,IR,HDD,SD,TV-OUT ,etc.

Optional
Functions

GPS

Wi-Fi

 3G/4G

Power
Supply

Car battery(For mobile monitoring)/Power adapter(For other applications)

Power
 input

DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V~DC38V)

Working
Current

 250~380±10 mA (the reference voltage is: DC24V)

Power
output

4CH

DC12V/3A

(Provide power for cameras,with built in re-settable fuses.)

8CH

DC12V/6A

Working
temperature

- 10℃~ + 50℃ (ultimate working temperature: - 20℃~ + 60℃)

Video
Technology

H.264(Data encryption,need to use the playback software to play the videos)

Storage
interface

SATA Standard HDD interface, SD/SDHC Card

Storage
Capacity

256GB SD/SDHC Card(two 128GB SD Card, suggest to use the SD Card
@ Class10 or above), support to connect 2.5" SATA 4TB HDD

Storage mode

Stop when full or cycle recording

Camera

Any CCD or CMOS

Video
Standard

PAL system or NTSC system

Video Input

Standard:input frequency:Vp-p=1.0V,input impedance:75Ω

Resolution

4ch full D1 real time synchronized recording, also support playback and upload in the process of recording.

Total Frame rate

4CH

PAL(1~100FPS optional)and NTSC(1~120FPS optional)

8CH

PAL(1~200FPS optional)and NTSC(1~240FPS optional)

Video quality

Main stream/Extra Stream mufti-grade adjustable

Output signal

4CH

CVBS (4ch video + 4ch audio,only support 1ch audio output at a same time)

8CH

CVBS(8ch video + 8ch audio only support 1ch audio output at a same time)

Ethernet Port

One 10M/100M Ethernet port (RJ45), Support 1ch IPC input in special circumstances

Alarm input

6ch independent alarm input port( with isolating function)

Alarm output

2ch independent relay alarm output(4ch model has two red alarm indicators)

USB Standard

2 USB 2.0 port(support USB mouse/keyboard operation)

Delay
power off

Delay duration :1minutes (default), we can OEM the delay duration.

3G/4G

Support 4CH D1 real time video and audio transmission, including GPS info.

Other
Technology

RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position

Mainframe
Size

146(Length)*138(Width)*45(Height)mm

Mainframe
Weight

About 500g

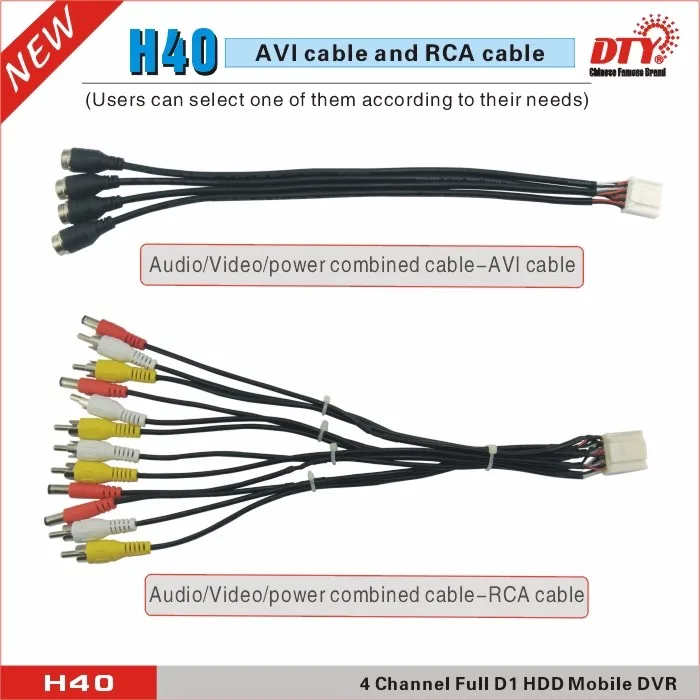

Accessories:




Pictures:



Net Service:
