Competitive 4ch h.264 dvr free client software bus taxi dvr support 1ch 1080p ip camera.

FOB Reference Price:Get Latest Price
US $89.5-202 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DTY
Model Number:
H4i
Power Supply:
DC12~36V
Video Compression:
H. 264
Maximum Capacity:
2*128GB SD CARD+ 4TB HDD
Optional functions:
GPS, WIFI, 3G, 4G
Video Resolution:
3ch D1 + 1ch 1080P
Video Output:
1ch CVBS (RCA)
Network:
RJ-45, WIFI, 3G, 4G, P2P, FTP, Mobile Monitor,
Packaging & Delivery
Packaging Details
Carton Packing.
10 sets to a carton
Carton size: 75cm*40cm*23cm
Delivery Time
Shipped in 5 days after payment
Competitive 4ch h.264 dvr free client software bus taxi dvr support 1ch 1080p ip camera.


Model

Features

H4i

Basic Model--3CH Full D1 & 1CH 1080P Local real time recorder.

Optional Functions

GPS

Wi-Fi

3G (need sim card)

4G (need sim card)





Features:

1.Basic: Full D1 Recording, 4TB HDD, 256GB SD Card(128GB*2),USB mouse operation, OSD, PTZ, GPS for Positioning and time synchronization, Power off delay

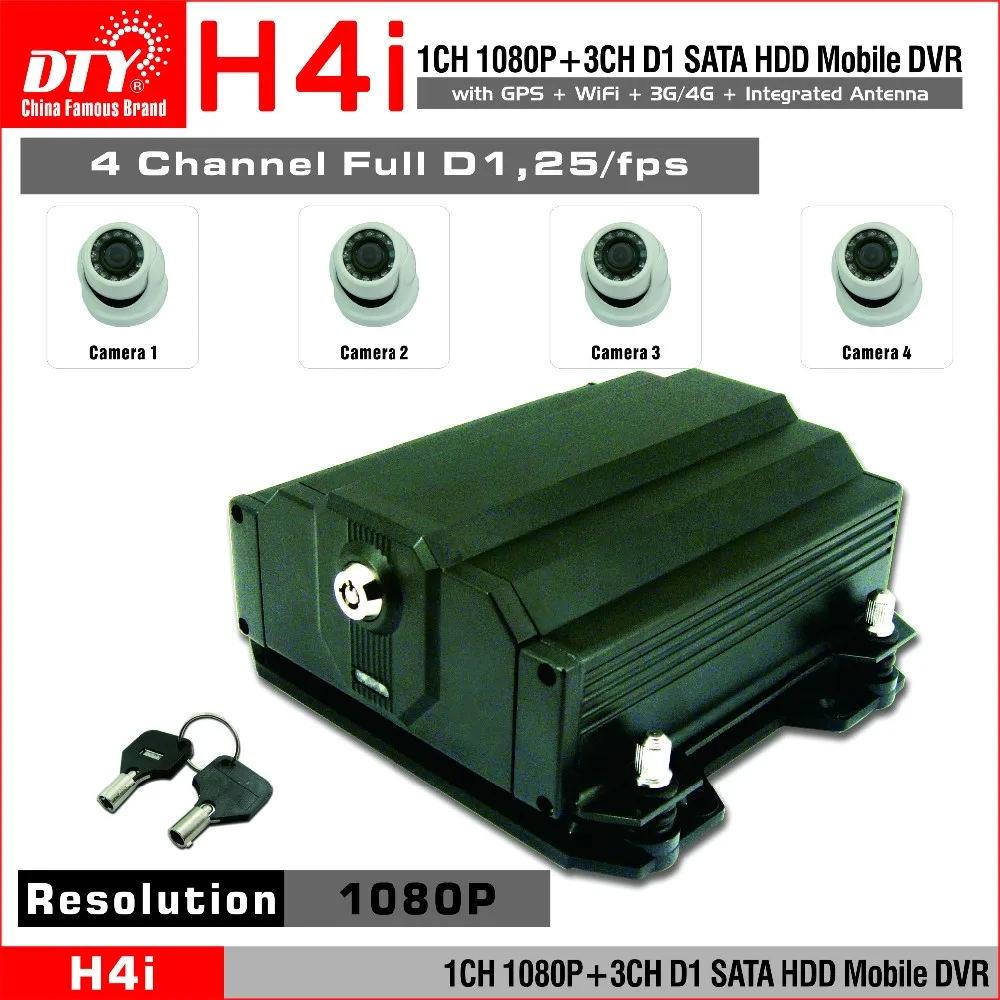

2. Cameras: 1ch 1080p ip camera and 3ch analog camera or 4 analogue cameras directly
2.Record type: Boot Record, Manual Record, Alarm record,motion detect record and Scheduled Record
3. Alarm Function: Video Loss, Video Blind, Alarm input, Alarm output, Sending Alarm info by Email.
4. Network Service: RJ-45 for IE remote access, remote management and remote view, FTP, Email alarm, 3G, 4G, WIFI, Mobile monitoring on IOS/Windows/Android, Cloud(P2P)
5. Other: User administration authority, automatic reboot, system log (and log export), Configuration Import and Export
6. Remote management APP:Car Server APP & Car Client App, Cloud CMS APP, Support 7 days 24 hours recording on the server.



Specifications:

Model

H4i

CPU

Hi silicon

Basic Functions

REC, PLAYBACK, ALARM, VGA, USB, IR, HDD, SD, TV-OUT ,etc.

Optional Functions

GPS

Wi-Fi

 3G/4G

Power Supply

Car battery (For mobile monitoring)/Power adapter (For other applications)

Power

DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V~DC38V)

 input

Working Current

 250~380±10 mA (the reference voltage is: DC24V)

Power

4CH

DC12V/3A

(Provide power for cameras,with built in re-settable fuses.)

output

8CH

DC12V/6A

Working temperature

- 10~ + 50 (ultimate working temperature: - 20~ + 60)

Video Technology

H.264(Data encryption, need to use the playback software to play the videos)

Storage interface

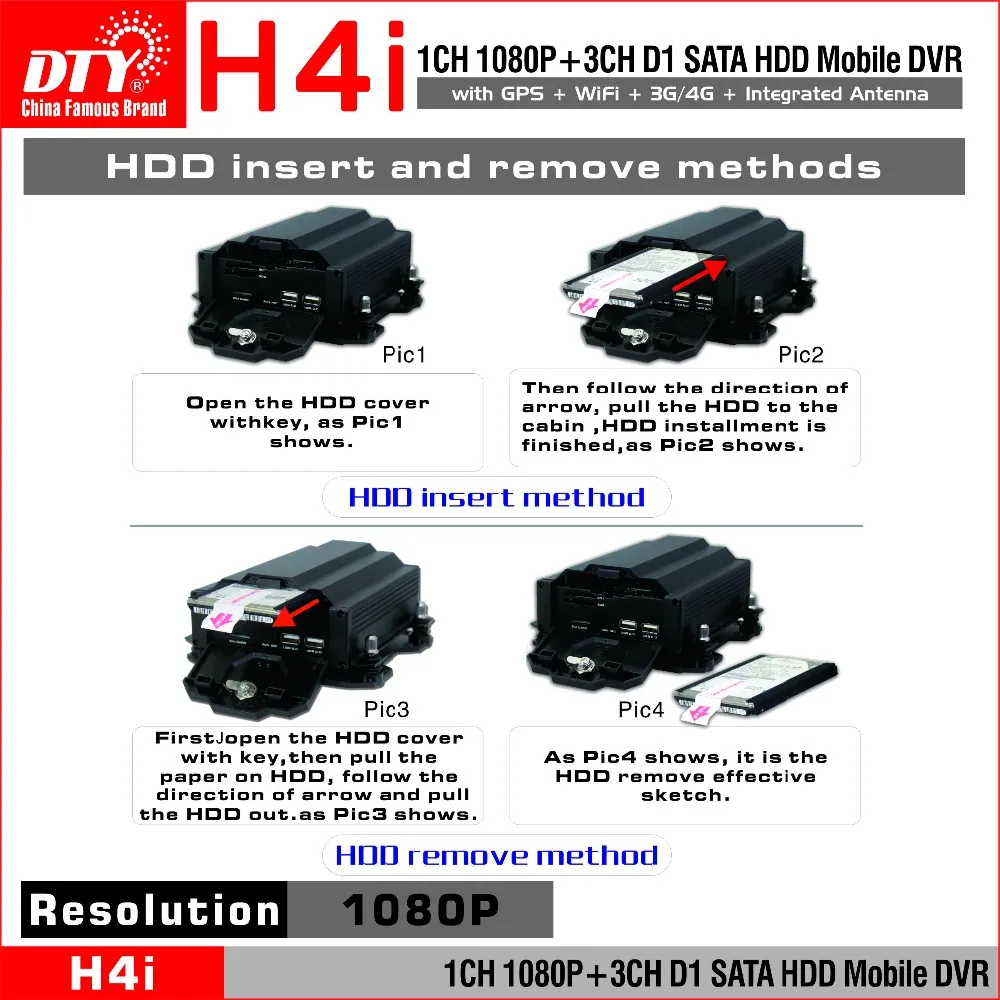

SATA Standard HDD interface, SD/SDHC Card

Storage

256GB SD/SDHC Card(two 128GB SD Card, suggest to use the SD Card

Capacity

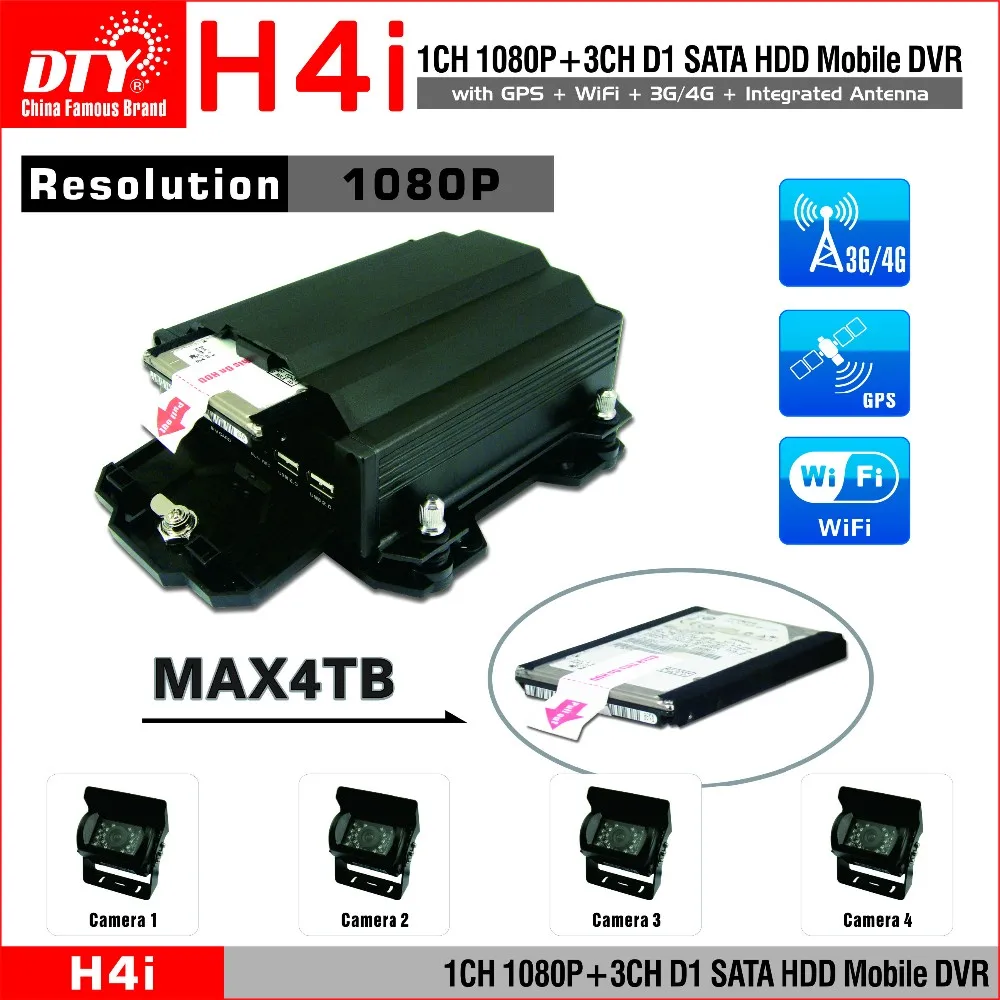

@ Class10 or above), support to connect external 2.5" SATA 4TB HDD

Storage mode

Stop when full or cycle recording

Camera

Any CCD or CMOS

Video Standard

PAL system or NTSC system

Video Input

Standard: input frequency: Vp-p=1.0V,input impedance:75Ω

Resolution

4ch full D1 or 8ch full D1 full real time synchronized recording, also support playback and upload in the process of recording.

Total Frame rate

4CH

PAL(1~100FPS optional)and NTSC(1~120FPS optional)

Video quality

Main stream/Extra Stream mufti-grade adjustable

Output signal

4CH

CVBS (4ch video + 4ch audio, only support 1ch audio output at a same time)

Ethernet Port

One 10M/100M Ethernet port (RJ45), Support 1ch IPC input in special circumstances

Alarm input

6ch independent alarm input port( with isolating function)

Alarm output

2ch independent relay alarm output(4ch model has two red alarm indicators)

USB Standard

2 USB 2.0 port(support USB mouse/keyboard operation)

Delay power off

Delay duration :1minutes (default), we can OEM the delay duration.

3G/4G

Support 8CH D1 real time video and audio transmission, including GPS info.

Other Technology

RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position

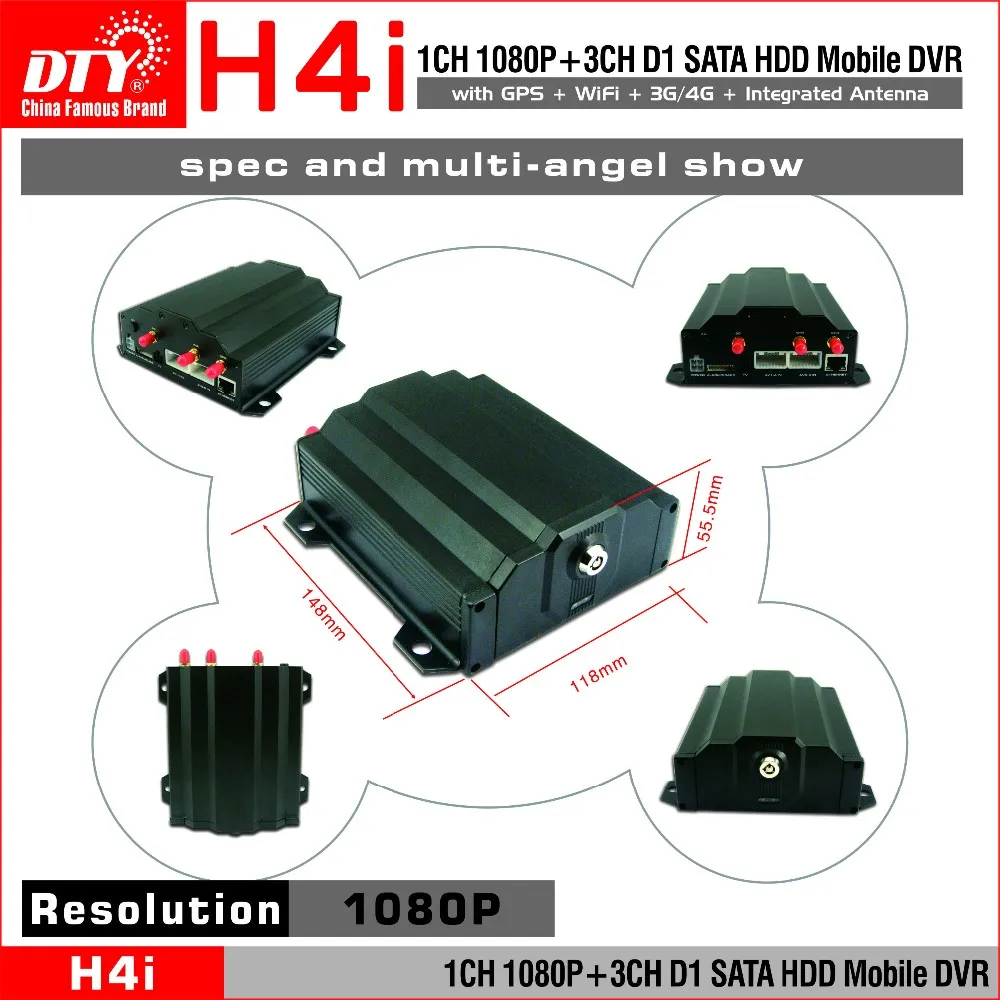

Mainframe Size

143(Length)*118(Width)*55.5(Height)mm

Mainframe Weight

About 500g

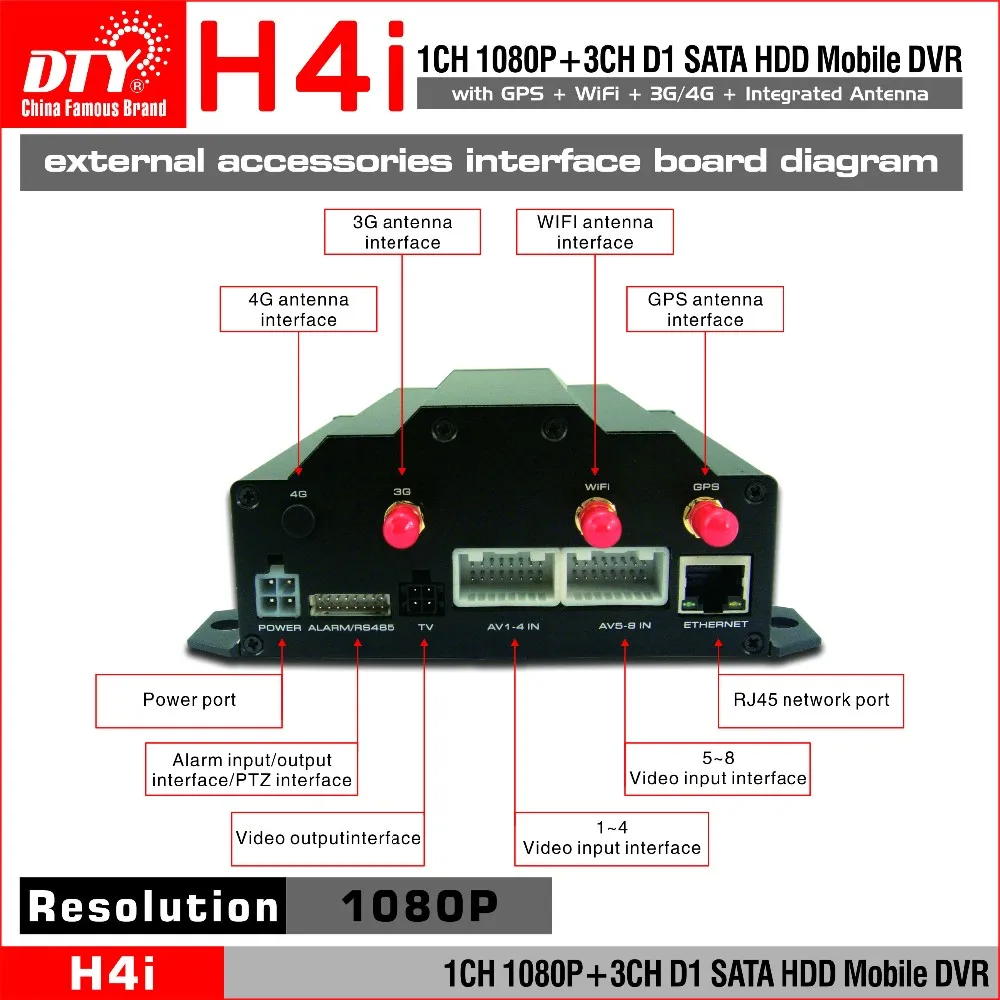

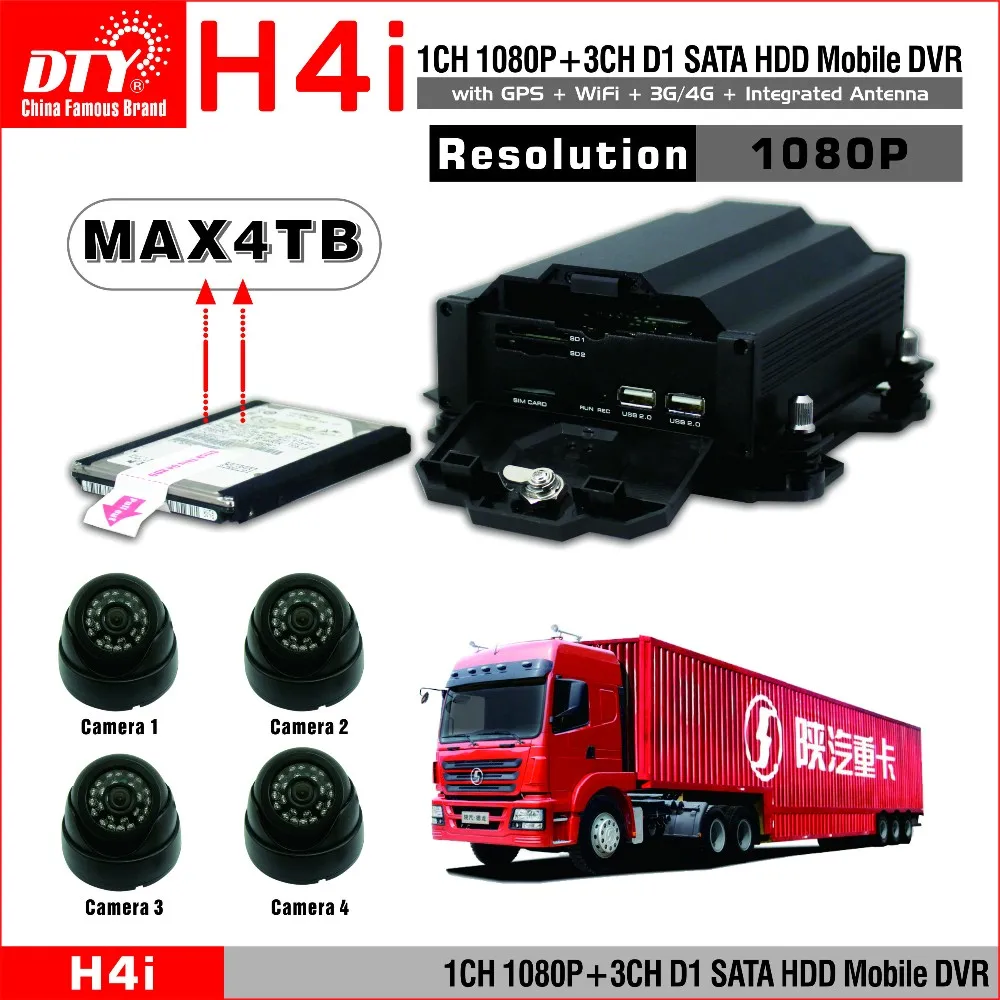

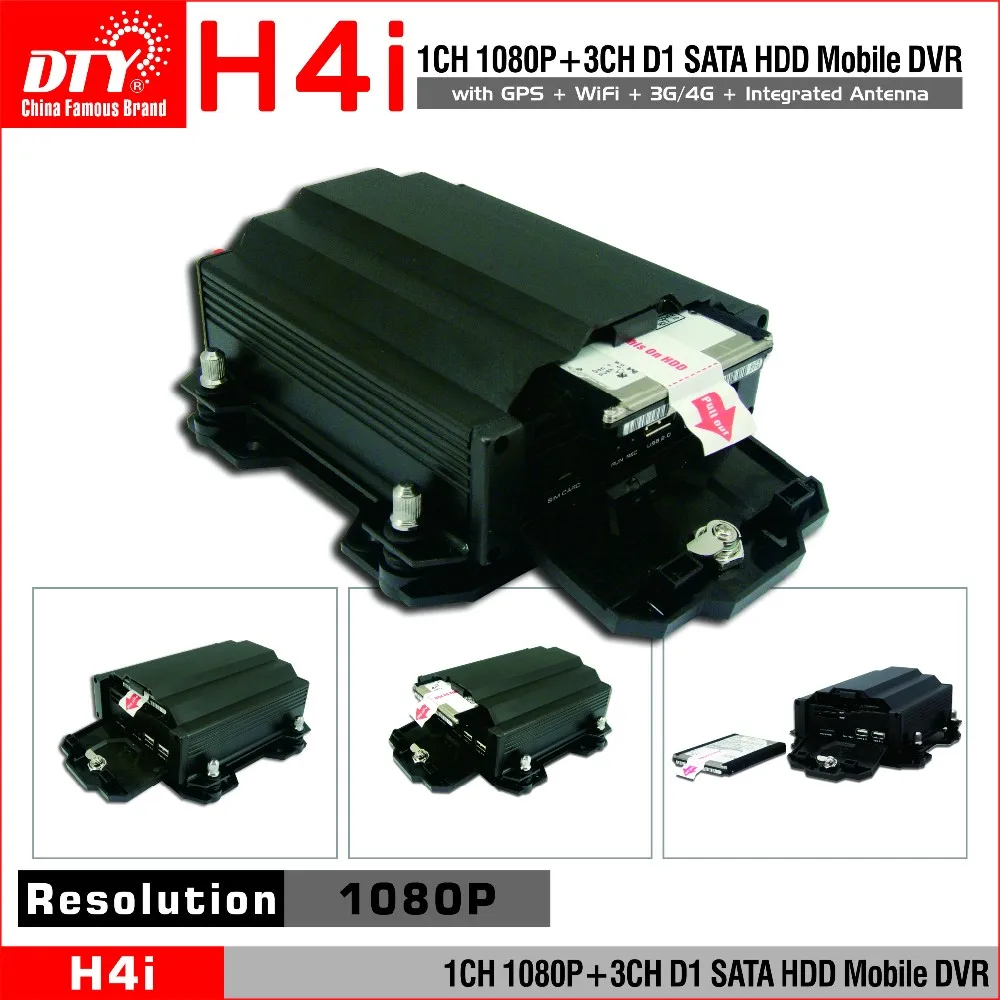

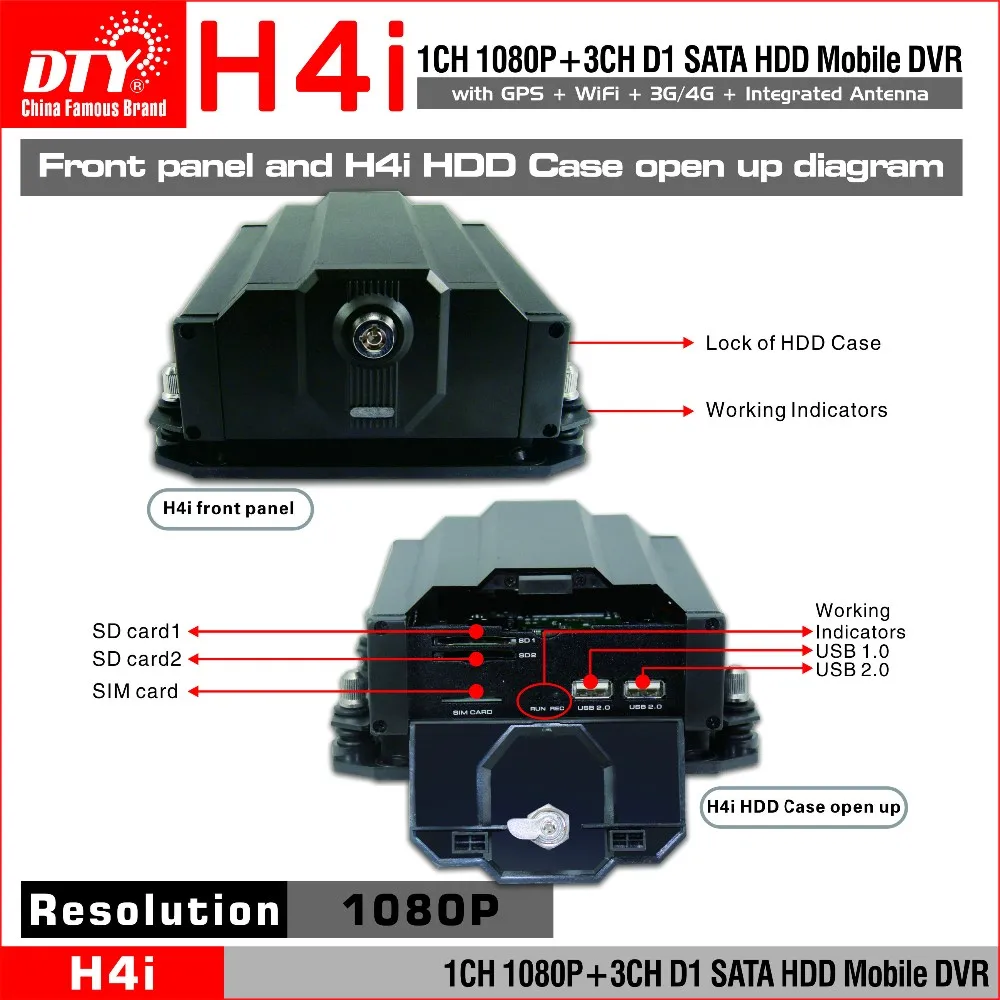

Pictures:



Net Service:
