4 channel 3g wifi gprs gps mobile dvr sd card 2ch dvr | X10

FOB Reference Price:Get Latest Price
US $76-210.5 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DTY
Model Number:
X10
Color:
sliver
Shell Material:
Aluminium alloy
Working Voltage:
DC8V-36V
Working temparature:
- 10℃~ + 50℃
Memory Storage:
SD card
Application:
vehicle surveillance and driving record (bus, car, ship etc)
Unit dimension:
155mm(L)*133mm(W)*194mm(H)
Ccompatible Camera:
AHD_M, AHD_L, 960H, Analog cameras
Video Output:
1ch CVBS
GPS:
moving path tracking
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton package.
Port
SHENZHEN
Lead Time :
Shipped in 5 days after payment

4 channel 3g wifi gprs gps mobile dvr sd card 2ch dvr



Product Description

Model: X10

Optional: GPS, Wi-Fi, 3G. 4G. G-Sensor

The X10 is a professional, rugged, solid state DVR designed for in-vehicle recording. X10 DVR adopts H.264 compression format, records up to 4 channels video and audio at the same time, support 2pcs 128GB for saving video clips. The video resolution is up to 720P for each channel, and frame rate up to 30fps (PAL).



Outstanding Features:

1. Basic: 4CH AHD 720P, 128GB SD Card(128GB*2), USB mouse operation, VGA, OSD, RS485 (PTZ), RS232, GPS, Power off delay (0~999 minutes)

2. Cameras: compatible with AHD-M, AHD-L, analog camera, Power for 4 Cameras directly.

3. Record type: Boot Record, Timing Record, motion detect record

4. Alarm Function: Video Blind, motion detect, HDD error, Alarm input, Alarm output, Sending Alarm info by Email.

5.Vehicle management: RJ-45, 3G, 4G, WIFI, Mobile remote monitor on IOS/Windows/Android, GPS (info upload)

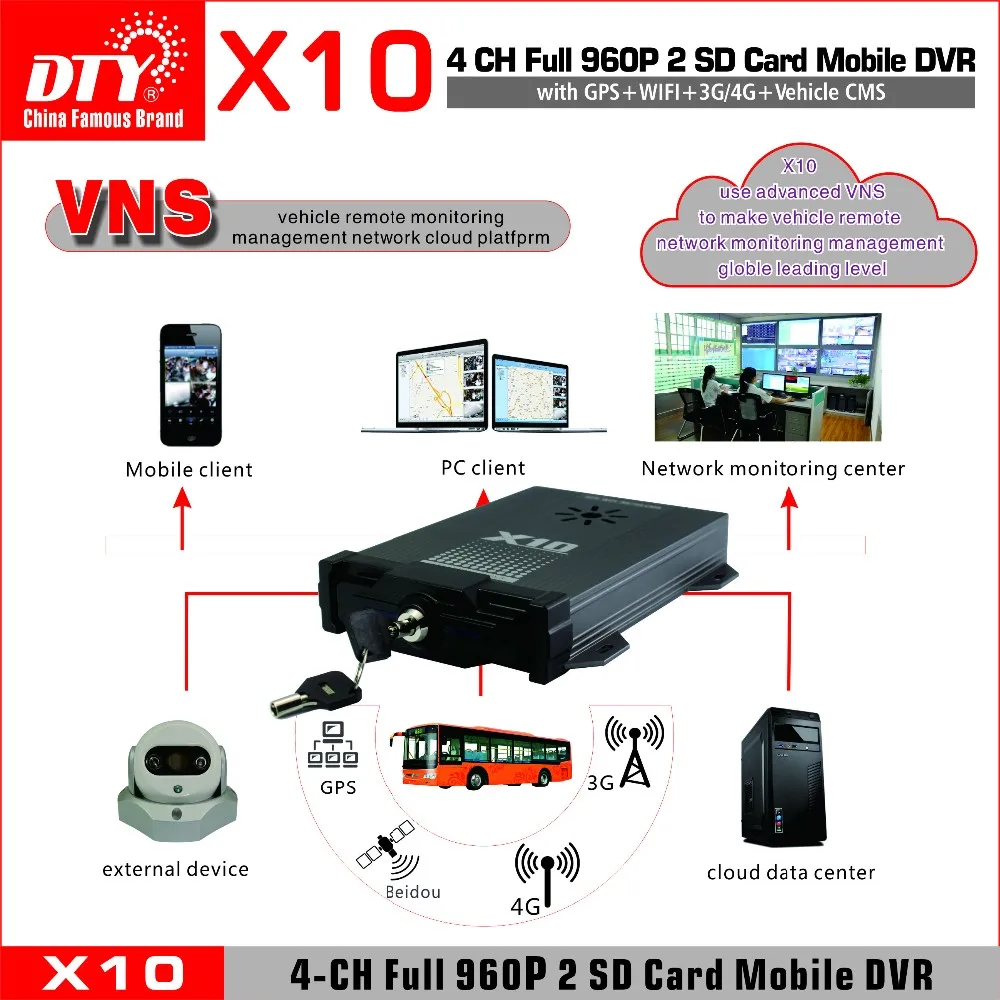

6. CMS Server & CMS Client Vehicle management software:



Support real time vehicle info display, alarm and GPS info display, GPS Positioning, moving path tracking, Geofence, Voice talk, alarm linkage, multi-languages, PTZ remote control, recordings, remote download, remote storage, snapshot, 3G/4G data traffic statistics, vehicle maintenance report (speed, fuel capacity etc.)





Technical Parameters:

X10 Specifications

 Optional Functions

X10

Equip with basic function and local record

GPS

Record position and speed for real time tracking

Wi-Fi

Connect to network by hotspot

3G

WCDMA or CDMA2000
        4G

7 modes full Netcom

Power supply mode

Vehicle battery(mobile monitoring platform)/power adapter(other monitoring platform)

Input

DC12V~DC36V(typical input voltage: DC12V / DC24V, limited input voltage: DC10V~38V)



Working current

Product model No.

Corresponding current when reference voltage is DC24V

X10-GPS-Wi-Fi

450 ±10 mA

X10-GPS-3G

480 ±10 mA

X10-GPS-4G

500 ±10 mA

X10-3G-GPS-WiFi

520 ±10 mA

X10-4G-GPS-WiFi

540 ±10 mA

Output

DC12V/3A(supply power to cameras video input devices, built-in PPTC protection function)

Working temperature

- 10℃~ + 50℃ (limited working temperature: - 20℃~ + 60℃)



cameras

AHD_M HD standard 720P (1280*720)/100 mega pixels or 960P (1280*960)/130 mega pixels / AHD _L standard 960H (960*540)/normal D1(720*576/normal VGA (640*480))

Video standard

PAL/NTSC (all channels have to use same standard cameras signal input)

Video input

Input standard: input amplitude Vp-p=1.0V, input impedance 75Ω

resolution

720P /960H /D1 /Half D1 /CIF

Video frame rate

PAL(1~100FPS optional)and NTSC(1~120FPS optional)

video quality

Multi-grade adjustable

Video compression

H.264

Storage mode

Boot record, schedule record, cycle cover

Video clip

3 minutes/5 minutes /10 minutes /15 minutes /30 minutes /45 minutes /60 minutes /90 minutes /120v

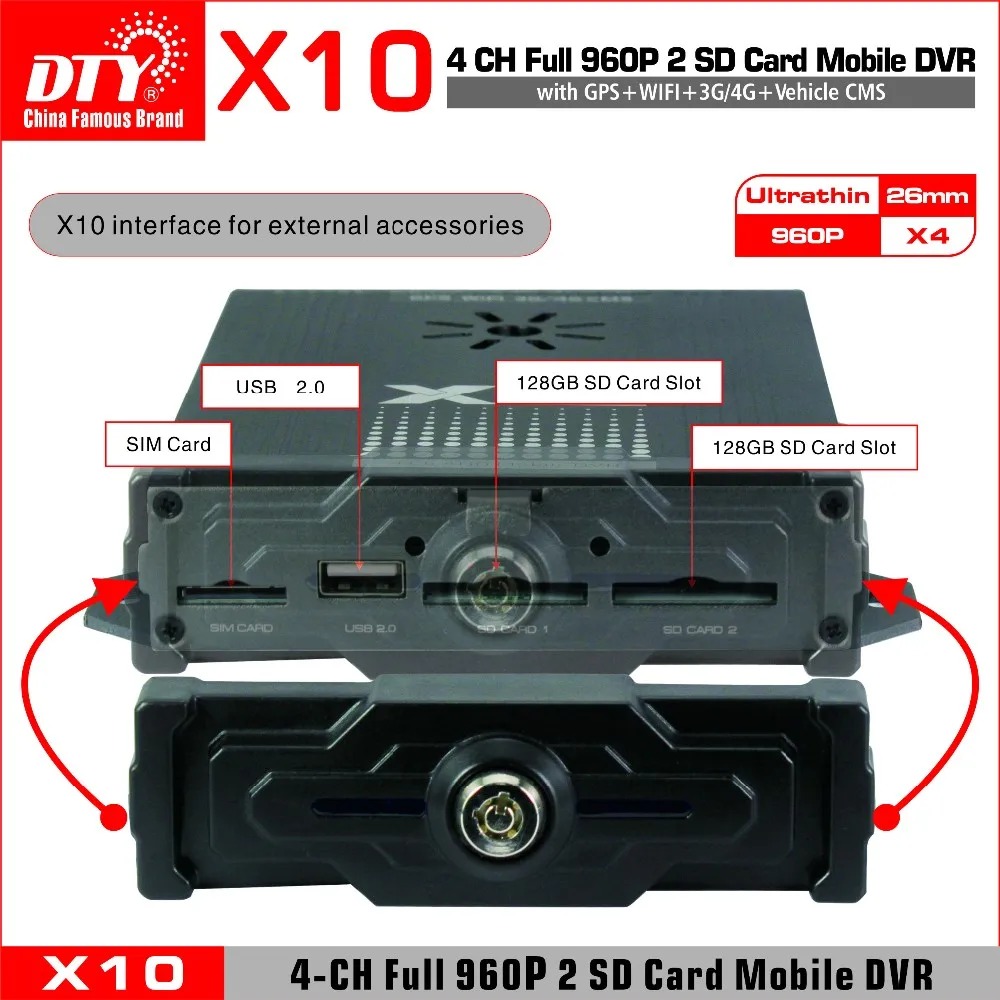

Storage interface

SATA  HDD interface,SD card and USB device(U disk/USB mobile HDD etc)

Storage capacity

2.5” SATA 4TB HDD/SDD,128GB SD/SDHC/SDXC(advise to use Class10 and above SD card)

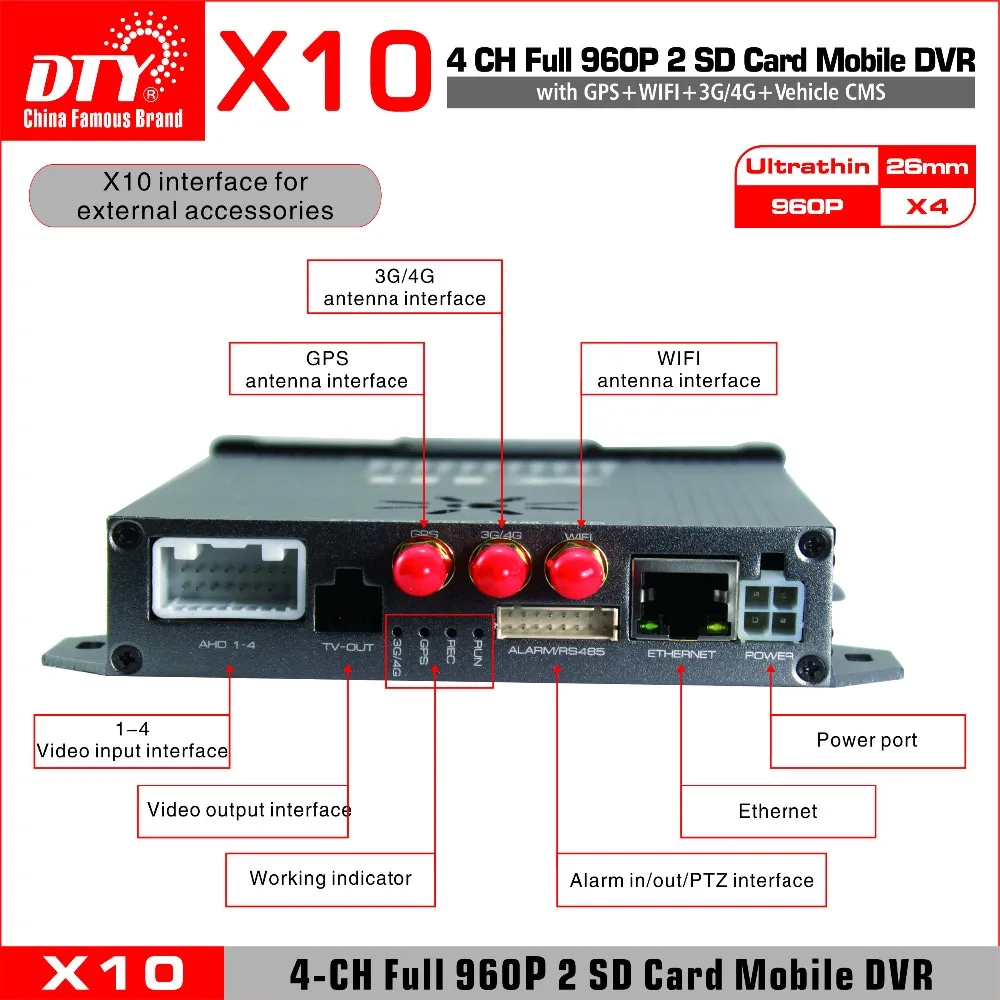

Output signal

CVBS composite audio video signal (4 channel video + 4 channel audio)/VGA

Network interface

1 x 10M/100M Ethernet interface(RJ45)

Alarm input

4 channel isolated alarm input interface (with isolation function)

Alarm output

1 channel isolated relay input interface (with isolation function)

USB standard

2xUSB 2.0 standard interface(support USB mouse,USB backup and system upgrade)

IR receive

1 IR receive terminal(next to USB interface, belong to reversed IR remote control interface)

Indicator

PWR indicator,RUN indicator,REC indicator,GPS indicator,3G/4G indicator

Delay power off

Delay power off, cooperation with ACC+ control wire, can set the time: 0 ~ 999 minutes

GPS technology

Support NMEA-0183 GPS protocol

WIFI

2.4G 150Mbps IEEE 802.11 b/g/n WIFI

3G

WCDMA,CDMA2000 and TD-SCDMA

4G

FDD-LTE and TDD-LTE

Other

RS485(PTZ),RS232(reserved)

Other design

Built-in SD card, built-in SIM card, built-in HDD, built-in clock battery and support users change design, cooling fan convection design, aviation connection design, ACC+ control wire design

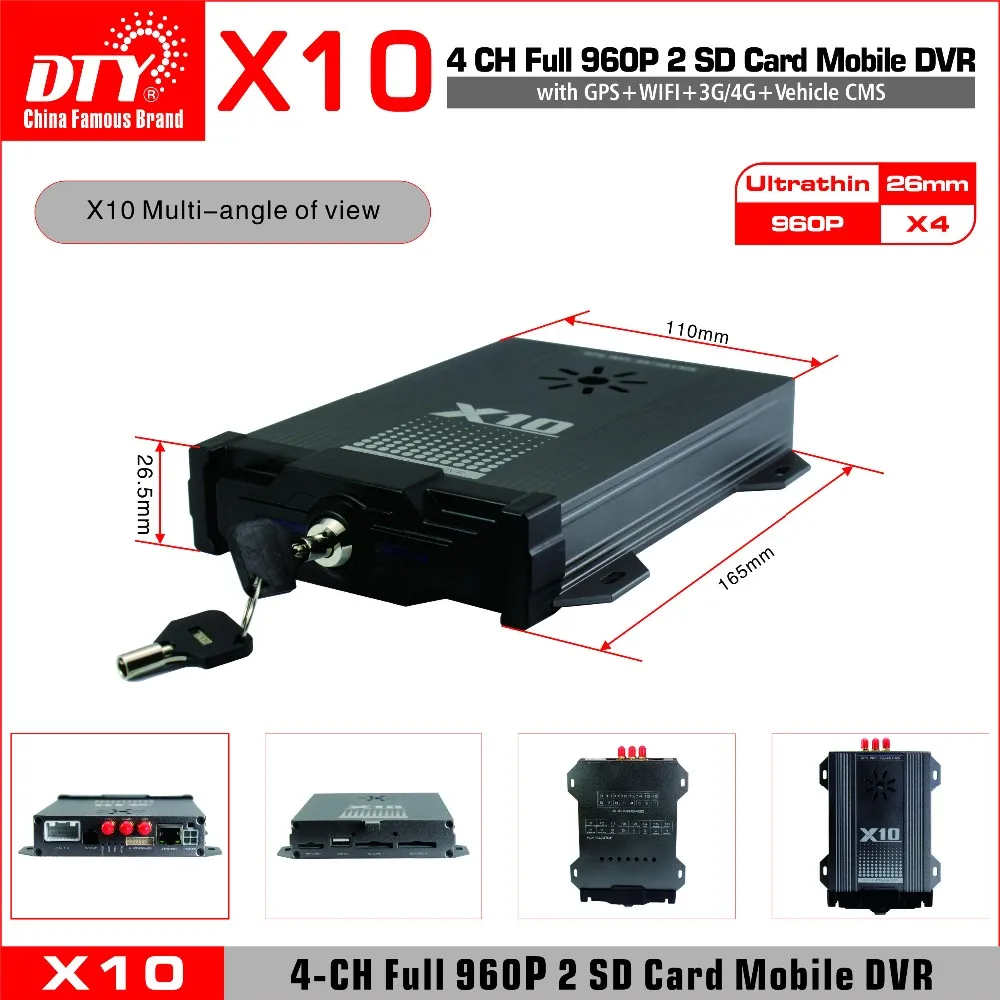

Mainframe side

210(L)*180(W)*50(H)mm

Mainframe weight

Approx 980g

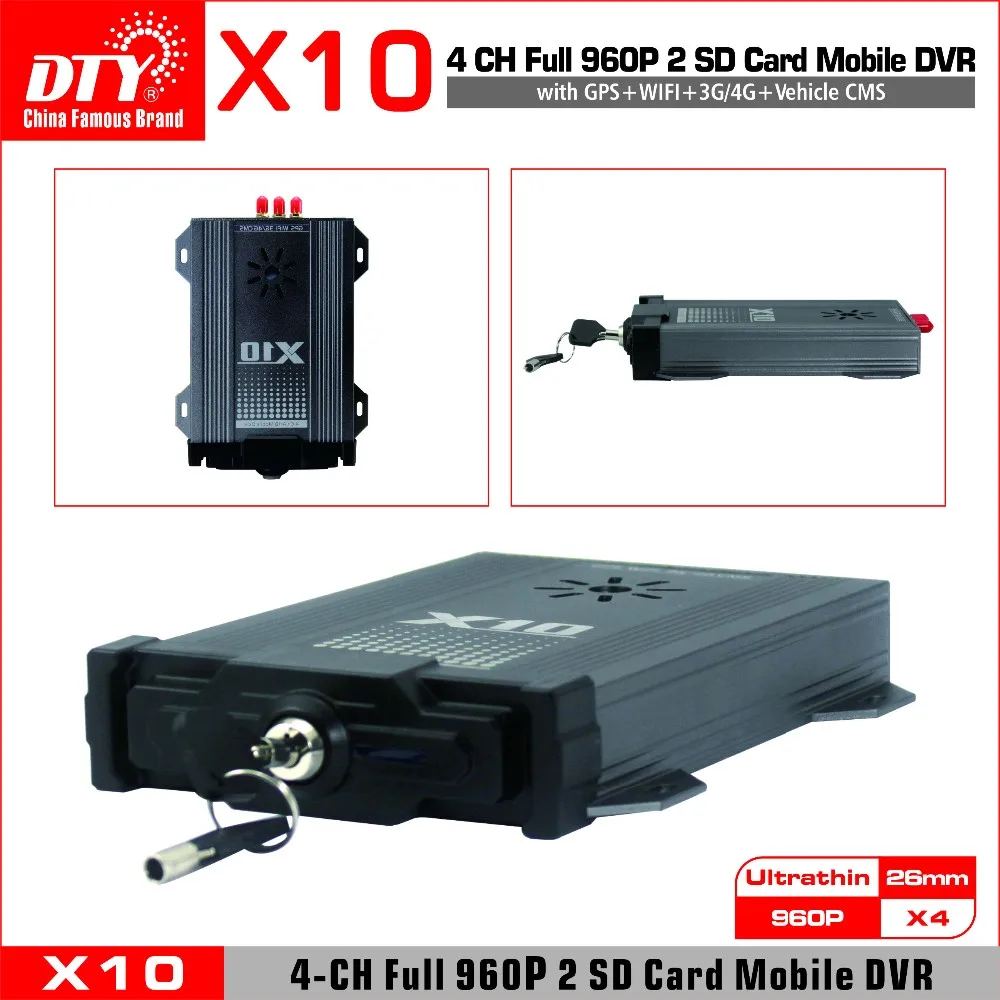

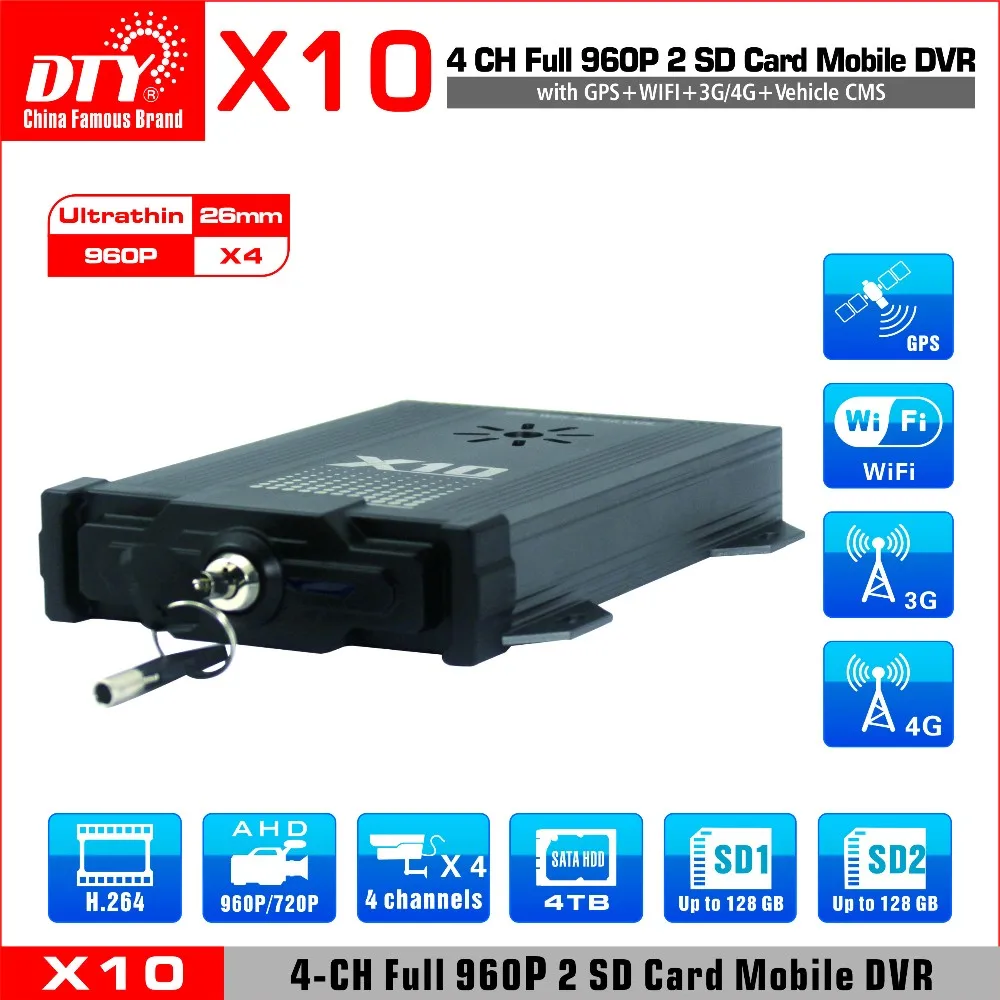

Product show:

X10 (1).jpgX10 (2).jpgX10 (3).jpgX10 (11).jpgX10 (17).jpgX10 (18).jpgX10 (19).jpgX10 (20).jpg

 X10 (5).jpgX10 (7).jpgX10 (9).jpg



Packaging & Shipping

 X10 (6).jpgX10 (10).jpg

We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT

Bulk order will be arranged by Air Freight, Sea shipment.



Our Services

1.Any inquiries will be replied within 24hours

2.Professional manuafacurer  for almost 18 years.
3.OEM available:
1)Customized logo or color box
2)Any your idea on dvr, we can help you to design and put it into production
4.High quality, fashion design, reasonable&competitive price, fast lead time
5.After-sale service:
1) All products will have been strictly Quality checked in workshop before packing
2) All products will be well packed before shipping.
3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
6.Fast delivery:
7.Payment:  You can pay for the order via: T/T,Western Union/MoneyGram,paypal

Company Information

 Our factory DTY(Shenzhen) Industrial Co., Ltd is established in 1996. With more than 15 years experience, DTY has developed into a hightech company specializing in Digital Video Recorder successfully. Our product range includes Mobile DVR, Portable DVR, Wireless DVR. With our experienced professional R&D department, we are also available to provide OEM and ODM services for buyers. We supply high quality products to our worldwide customers along with excellent customer service which gain us a lot of reputation.



And long-term cooperation is what we expect.
