Fleet management 4g gps xmeye cloud technology cctv dvr from xm dvr manufacturers,S204-4G

FOB Reference Price:Get Latest Price
US $78.5-227 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DTY
Model Number:
S204-4G
Certificate:
CE FCC RoHS
Video Compression:
H.264
Storage Capacity:
2*128GB SD/SDHC Card
Frame rate:
PAL 25FPS & NTSC 30FPS
Alarm:
Support alarm in/out
Camera:
CCD/CMOS
Working Voltage:
DC8V-36V
Working temperature:
-20℃~+60℃
Mainfram Size:
146*138*40mm
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

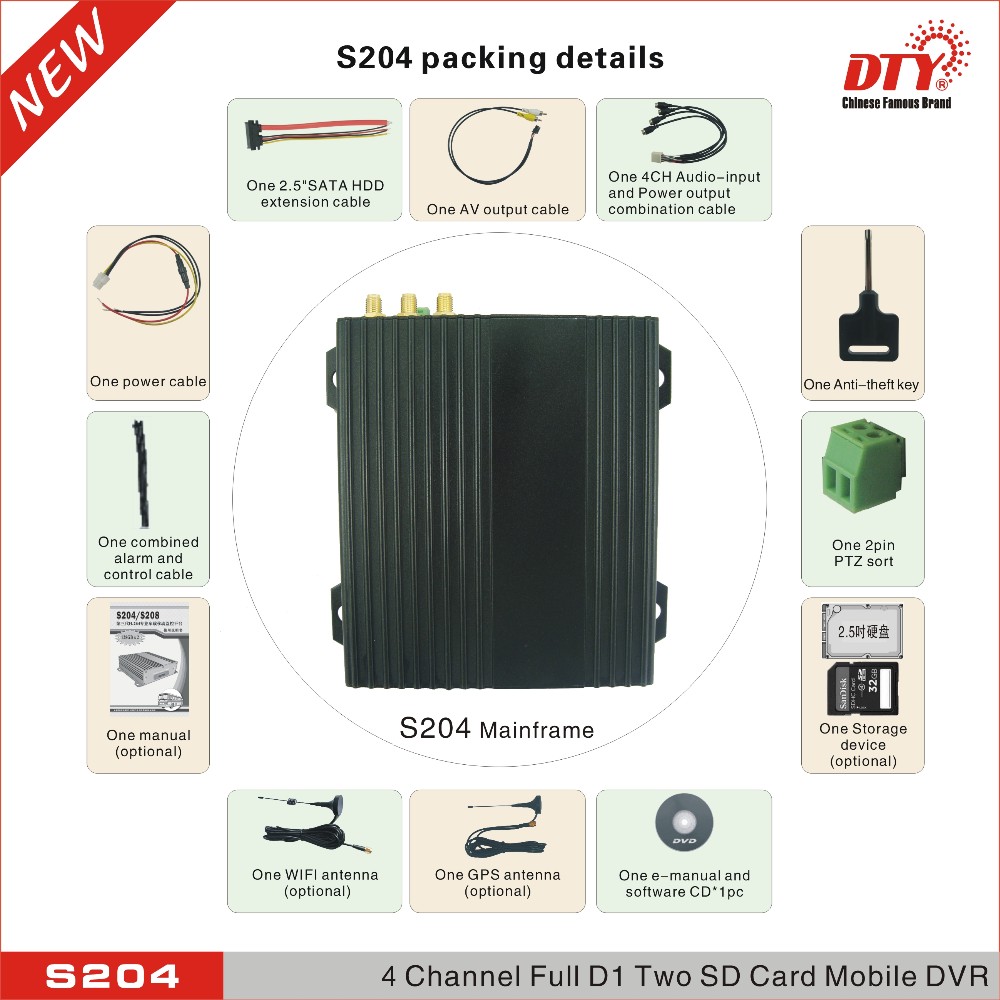

1pcs dvr with accessories in one box,10pcs dvr in one carton.Box size:24.2*18*9.6cm,carton size : 50*38.5*26cm
Port
Shenzhen
Lead Time :
according to the quantity

Fleet management 4g gps xmeye cloud technology cctv dvr from xm dvr manufacturers,S204-4G. support XMeye app and Myeye app for phones.

Overview

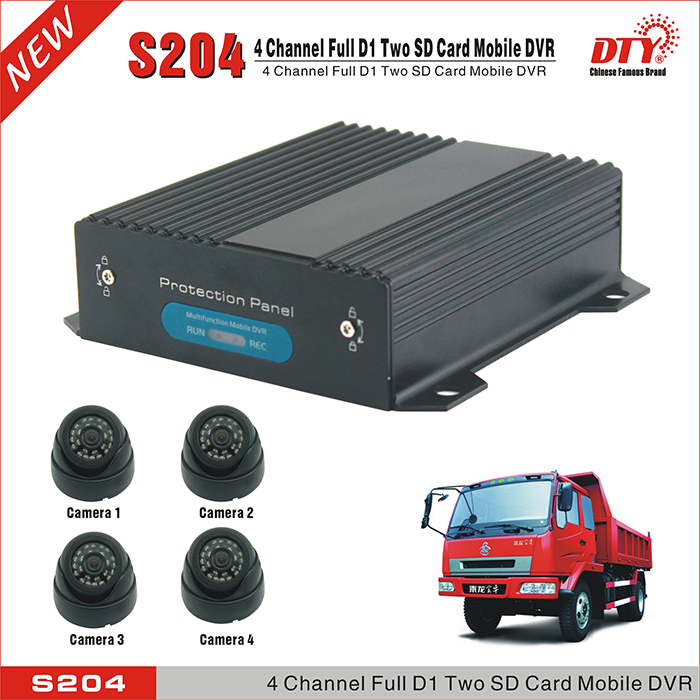

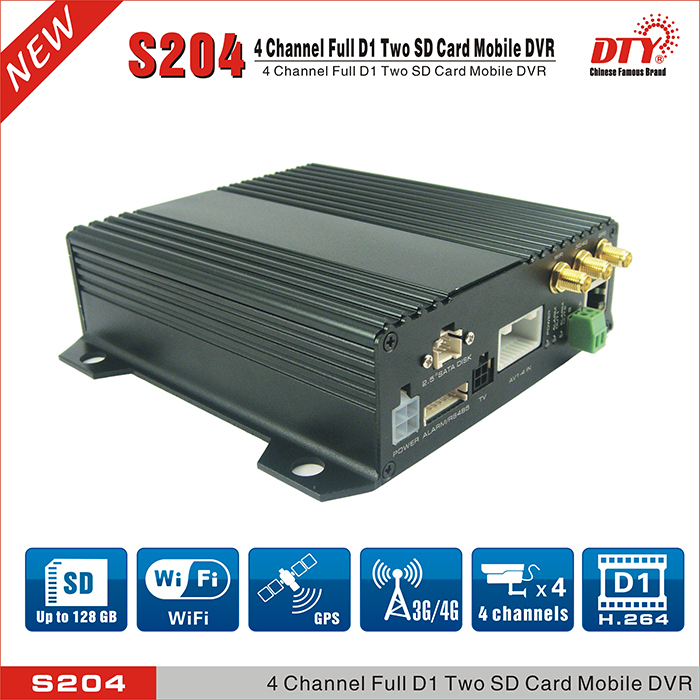

    S204 is a professional,rugged,solid state DVR desined for in-vehicle recording.S204 records up to 4 channel video and audio locationdata prom built-in GPS(optional).It supports dual SDcards up to 256GB for memory storage.And it also supports extensible fuction such as GPS,WIFI,3G,4G,S-sensor,ect.S204 series can work with all CCD/CMOS cameras,and can power 4 cameras  directly.It is a new in-vehicle recording system that you can rely on.

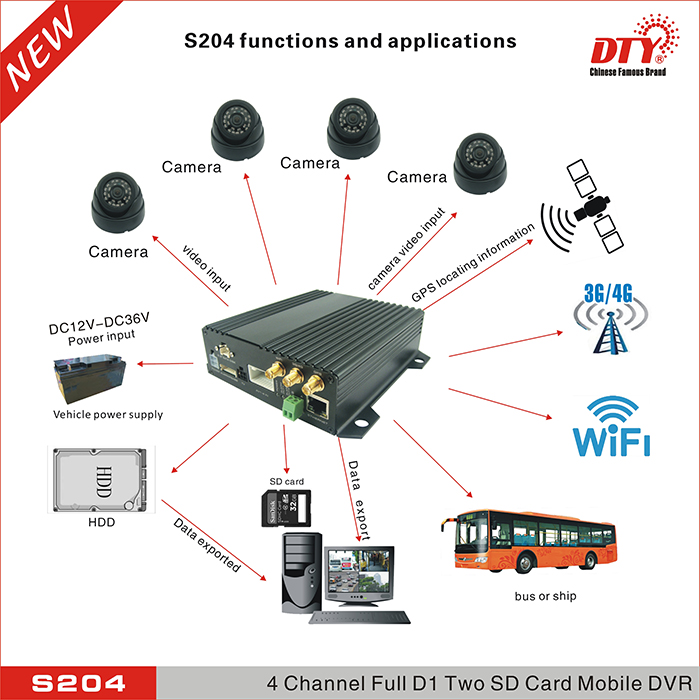

Application

   Main application : Taxi,bus ,school bus,private car,truck,special passage car,ship, in-public place.



Features

(1) H.264 Video compression format.

(2) Supports Manual Record, Alarm record and Scheduled Record.

(3) Video resolution: D1/HD1/CIF/QCIF selectable for each channel.

(4) Frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel.

(5) Supports 4 channels full D1 recording and playback simultaneously.

(6) Supports two SD cards,each SD Card up to 128GB,cycle recording.

(7) Supports 6 alarm input and 2 alarm output.

(8) Power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs.

(9) Support DC12V, 3A power out, can power 4 cameras directly.

(10) Equiped with external HDD interface,can connect an external HDD.

(11) Support 2 PTZ control interface.

(12) Support GPS,Wifi,3G/4G

(13) Certificate:CE, FCC, RoHS.



Models

 Model

Descriptions

 S204

Basic model(basic functions such as REC,PLAYBACK,ALARM,VGA,USB,IR,HDD,SD,TV-OUT,etc.)

 S204G

Basic model + GPS

 S204W

Basic model + WIFI

 S204-3G

Basic model + 3G

 S204-4G

Basic model + 4G

 S204-GW

Basic model + GPS + WIFI

 S204-3GW

Basic model + GPS + WIFI + 3G

 S204-4GW

Basic model + GPS + WIFI + 4G



Parameters

Power Supply

Car battery(For mobile monitoring)/Power adapter(For other applications)

Power input

DC12V~DC36V(Standard power input:DC12V~DC24V,

ultimate power input: DC8V~DC38V)

Power output

DC12V/3A

Provide power for cameras,with built in re-settable fuses.

Working Current

250~380 ±10 mA (the reference voltage is:DC24V)

Working temperature

- 10℃~ + 50℃(ultimate working temperature: - 20℃~ + 60℃)

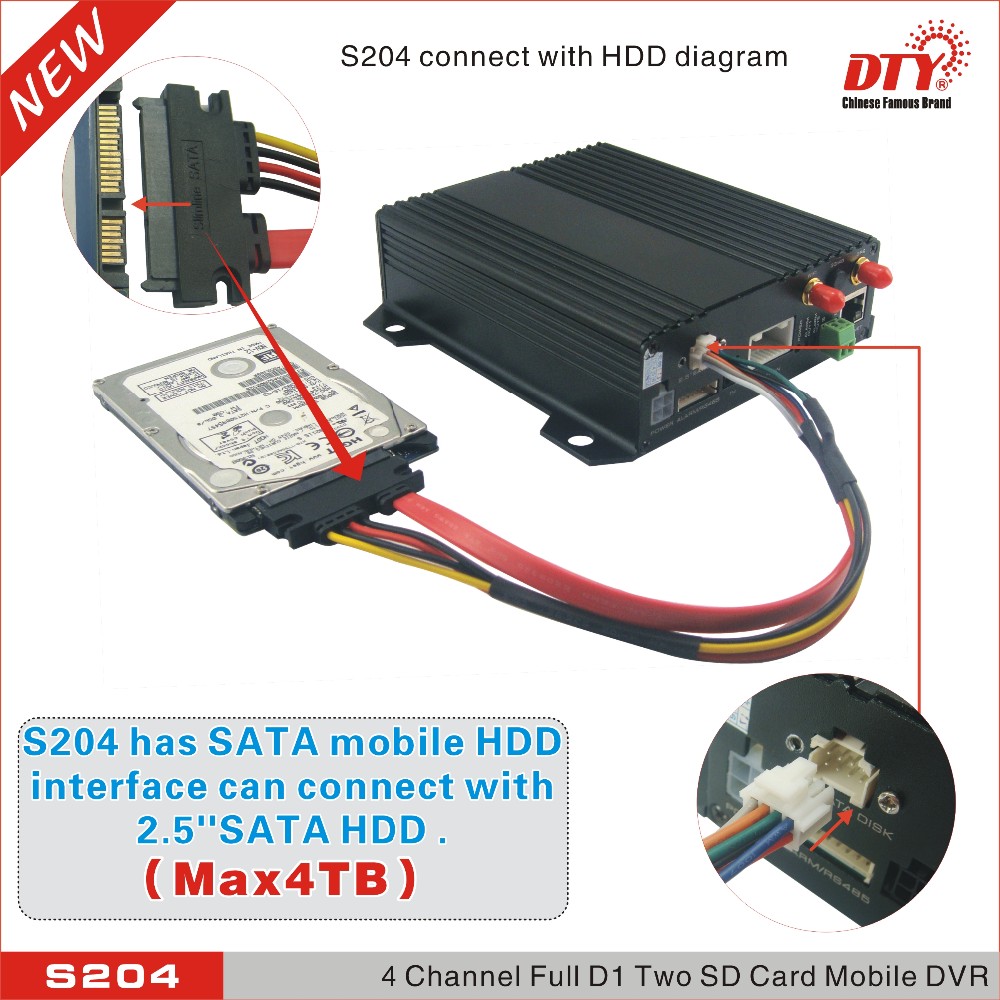

Storage interface

Standard SATA II HDD interface, SD / SDHC Card

Storage Capacity

2.5’’ SATA II 4TB HDD,2*128GB SD/SDHC Card(suggest to use the SD Card

with the speed over Class10)

Storage mode

stop when full or cycle recording

Camera

CCD/CMOS

Video Technology

H.264(Data encryption, need to use the playback software to play the videos)

Video Standard

PAL system or NTSC system

Video input

Input standard: input frequency: Vp-p=1.0V,input impedance: 75Ù

Resolution

4ch D1 full real time recording, also support the playback function while recording.

Total frame rate

PAL(1~100FPS optional)and NTSC(1~120FPS optional)

Video quality

Main stream/Extra Stream mufti-grade adjustable

Output signal

CVBS(4ch video + 4ch audio,but only support 1ch audio output at a same time)

Ethernet Port

One 10M/100M Ethernet port (RJ45)

Alarm input

6ch independent alarm input port (with isolating function)

Alarm output

2ch independent alarm output port.(4 ch DVR has two red indicator light display

 alarm output state.)

USB Standard

2 USB 2.0 port(support USB back up and system upgrade)

Delay power off

Delay duration :1minutes (default), we can OEM the delay duration.

3G/4G

Support 4CH D1 real time video and audio transmission, including GPS info.

Other technology

 RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position

DVR dimension

146(Length)*138(Width)*40(Height)mm

mainframe weight

Around 500g



Pictures

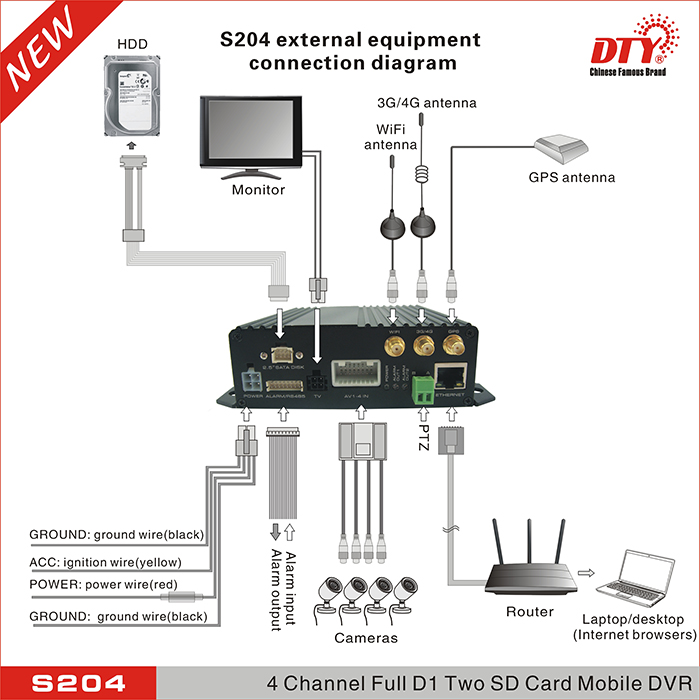

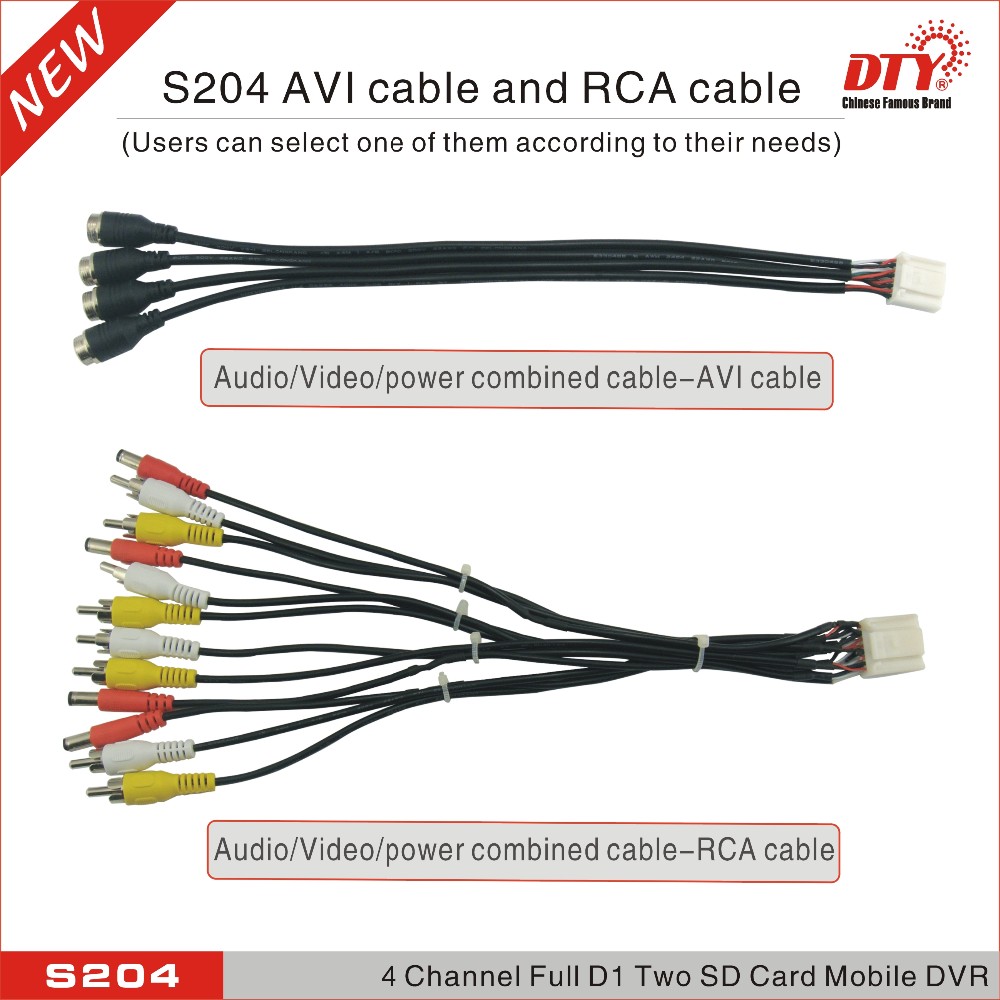

S204()-03.jpgS204()-04.jpgS204()-05.jpgS204-08



S204()-15.jpgS204()-13

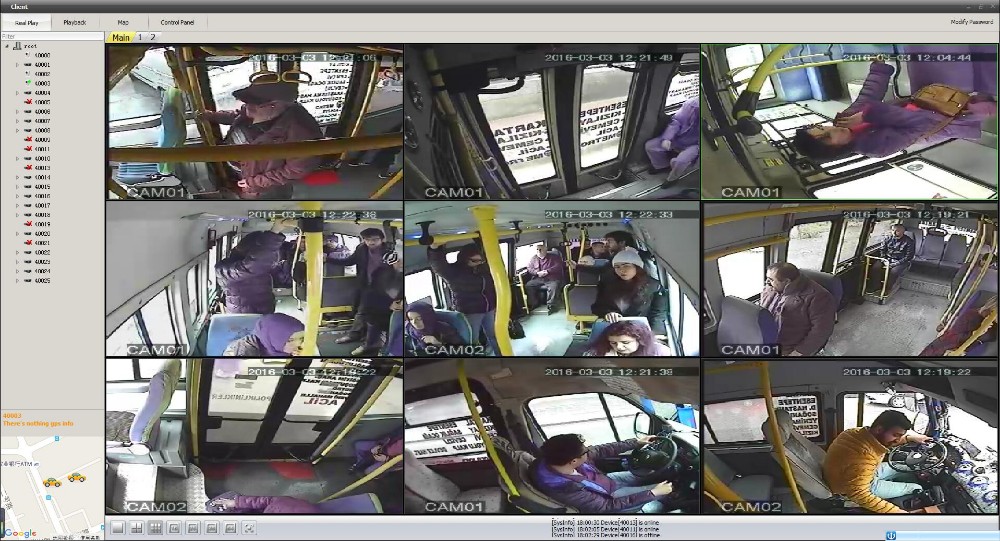

Myeye Client Platform

mobile dvr platform.jpg

Certificate

Certificate



Exhibition


visiting clients


Shipping

We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT.

You also can choose your own shipping forwarder.



Services

1.Any inquiries will be replied within 24hours
2.OEM available:
   1)Customized logo or color box
   2)Any your idea on camera, we can help you to design and put it into production
3.After-sale service:
   1) All products will have been strictly Quality checked in workshop before packing
   2) All products will be well packed before shipping.
   3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
4.Payment:
You can pay for the order via: T/T,Western Union/MoneyGram,paypal
