720P HD 4ch free cms vehicle gps gsm network 4g mdvr, intelligent h.264 dvr for truck car buses

FOB Reference Price:Get Latest Price
US $80-243 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
X9S series
Model type:
X9S vehicle 720p blackbox dvr, h.264 mobile dvr
video standard:
Powe input:
Working temperature:
Video Technology:
Total Frame rate:
PAL(1~100FPS optional)and NTSC(1~120FPS optional)
Storage interface:
SATA Standard HDD interface, SD/SDHC Card slot
Storage mode:
Stop when ful l or cycle recording
Mainfram Size:
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Normal packing as shown. Provide OEM/ODM packing.
Lead Time :
Quantity(Pieces) 1 - 5 6 - 20 >20
Est. Time(day) 5 8 To be negotiated

X9S Series wireless mdvr, CE ROHS Remote control 4ch free cms vehicle gps gsm network 4g mdvr, intelligent h.264 mobile dvr for forklift vehicle, use for taxi, bus, car. ( gps/wifi/3g/4g are optional). Support CMSV6 APP software.



Normal 3G Module including:

GSM/GPRS/EDGE 850/900/1800/1900MHZ,

 HSDPA/WCDMA : 850/1900/2100MHZ
Normal 4G module compatible with 3G, 2G ( 4G including LTE-TDDD : band 38/39/40/41
LTE-FDD: band1/3, TD-SCDMA: band 34/39, UMTS: band 1, EVDO: 800MHz,
CDMA1: 800MHz, GSM: 8500/900/1800/1900)


Attention please,  If you find that above 3G/4G band is not available for your local , please contact us and tell us what band you need, we  will make a better solution for you.

Cheap price + Best service. Guarantee the high quality.

Product Description

X9s Series Guide




Basic Model----4CH Full AHD Real Time Recorder


X9s+GPS+ RJ45




X9s+GPS+3G+ RJ45


X9s+GPS+4G+ RJ45





















1.The hardcore adopts ARM11 (main frequency 600 MHZ) professional high-performance processor, equipped with 2 gbit (256 MB) high-speed DDR3 RAM;
2.Supports 4CH AHD (Analog High Definition)720P video recording, downward compatibility 960H,D1, VGA,HD1 and CIF video recording;
3.Adopts h.264MP (Main Profile Level5.0) video compression technology,which will save two-
third storage capacity;
4.Supports GPS and automatically update date/time.Can use Google map to track the moving path when playback videoes or remotely monitor on PC;
5.Supports RJ45/2.4G WIFI/ 3G / 4G, will provide matching network server platform to realize the remote centralized monitoring management.
6.Supports a 2.5 inch SATA standard 4TB large-capacity hard disk and a 128GB SD/SDHC/SDXC CARD;
7.Supports power off delay after ACC+ is disconnect, the power off delay time
will be optional according to the range: 0~999(minute)
8.Supports CVBS and VGA output at the same time, will be easily for user to monitor on large LCD screen .
9.Supports 4CH alarm input and 1CH alarm output ;
10.Supports RS485 communication,support multiple PTZ device to access;
11.Supports operate system and configurate parameter by using USB mouse ;
12.Supports boot record, timing record, cyclic covering;
13.Supports user-defined channel name and device ID/plate number to make use,maintenance and management more easier ;



InputDC12V~DC36V(typical input voltage: DC12V / DC24V, limited input voltage: DC10V~38V)
 Product model No.Corresponding current when reference voltage is DC24V
Working currentX9s-GW450 ±10 mA
X9s-3G480 ±10 mA
X9s-4G500 ±10 mA
X9s-3GW520 ±10 mA
X9s-4GW540 ±10 mA
OutputDC12V/3A(supply power to cameras video input devices, built-in PPTC protection function)
camerasAHD_M HD standard 720P (1280*720)/100 mega pixels or 960P (1280*960)/130 mega pixels / AHD _L standard 960H (960*540)/normal D1(720*576/normal VGA (640*480))
Video standardPAL/NTSC (all channels have to use same standard cameras signal input)
Video inputInput standard: input amplitude Vp-p=1.0V, input impedance 75Ω
resolution720P /960H /D1 /Half D1 /CIF
Video frame ratePAL(1~100FPS optional)and NTSC(1~120FPS optional)
Video compressionH.264
Storage modeBoot record, schedule record, cycle cover
Video clip3 /5  /10  /15 /30  /45 /60/90/120 minute
Storage interfaceSATA  HDD interface,SD card and USB device
Storage capacity2.5” SATA 4TB HDD/SDD,128GB SD/SDHC/SDXC
Output signalCVBS composite audio video signal (4 channel video + 4 channel audio)/VGA
Network interface1 x 10M/100M Ethernet interface(RJ45)
Alarm input4 channel isolated alarm input interface (with isolation function)
Alarm output1 channel isolated relay input interface (with isolation function)
USB standard2xUSB 2.0 standard interface(support USB mouse,USB backup and system upgrade)
IR receive1 IR receive terminal(next to USB interface, belong to reversed IR remote control interface)
IndicatorPWR indicator,RUN indicator,REC indicator,GPS indicator,3G/4G indicator
GPS technologySupport NMEA-0183 GPS protocol

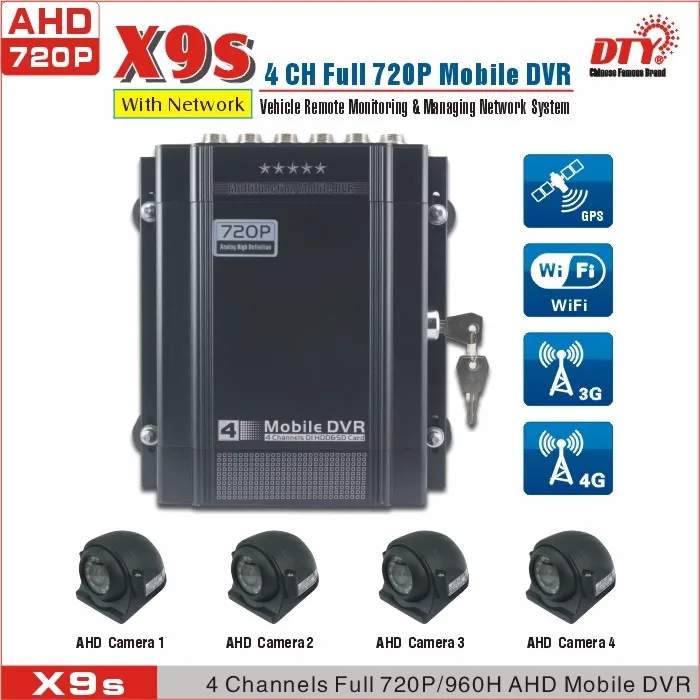

X9S mobile DVR picture show:












Packaging & Shipping


Mdvr Packing List
